Key Specifications
Engine
In-line four, four-stroke
Torque
111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 7300 Revolutions
Weight
221.0 kg / 487.2 lbs
Fuel Capacity
17.00 litres / 4.49 gallons
Advertisement

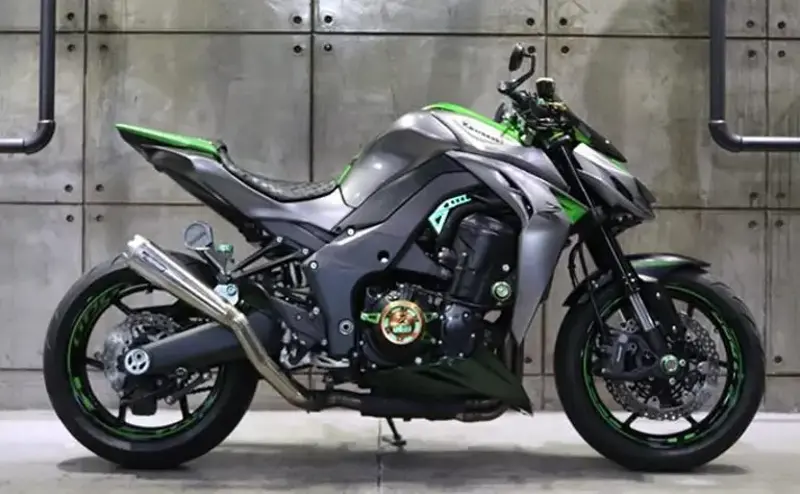

Full 2017 Kawasaki Z 1000 Specifications
Colours
Golden Blazed Green/Metallic Spark Black, Candy Burnt Orange/Flat Ebony
Ground Clearance (mm)
125 mm
Ground Clearance (in.)
4.9 inches
Seat Height
815 mm / 32.1 in.
Wheelbase
1,435 mm / 56.5 in.
Height
1,055 mm / 41.5 in.
Length
2,045 mm / 80.5 in.
Width
790 mm / 31.1 in.
Fuel Capacity
17.00 litres / 4.49 gallons
Wet Weight
221.0 kg / 487.2 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
63.64 cubic inches
Displacement (cc)
1043.00 cc
Bore x Stroke (mm)
77.0 x 56.0 mm
Bore x Stroke (in,)
3.0 x 2.2 inches
Fuel System
Injection
Compression Ratio
11.8:1
Engine Lubrication
Forced lubrication, wet sump
Ignition
Digital
Starter
Electric
Valve System
4
Clutch
Wet multi-disc, manual
Final Drive
Chain
Gearbox
6-speed
Primary Drive
Sealed chain
Frame Type
Twin-tube, aluminium
Suspension - Front
41 mm inverted fork with stepless compression and rebound damping and spring preload adjustability
Suspension - Rear
Horizontal monoshock with stepless rebound damping, adjustable spring preload
Rake
24.5°
Trail
104 mm / 4.1 in.
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
135 mm / 5.3 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
9.8 inches
Brakes - Rear Diameter (mm)
250 mm
Brakes - Front
Double disc. Floating discs.
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
190/50-ZR17
