Key Specifications
Engine
In-line four, four-stroke
Torque
158.20 Nm (16.1 kgf-m or 116.7 ft.lbs) @ 7500 Revolutions
Weight
268.0 kg / 590.8 lbs
Fuel Capacity
22.00 litres / 5.81 gallons
Advertisement

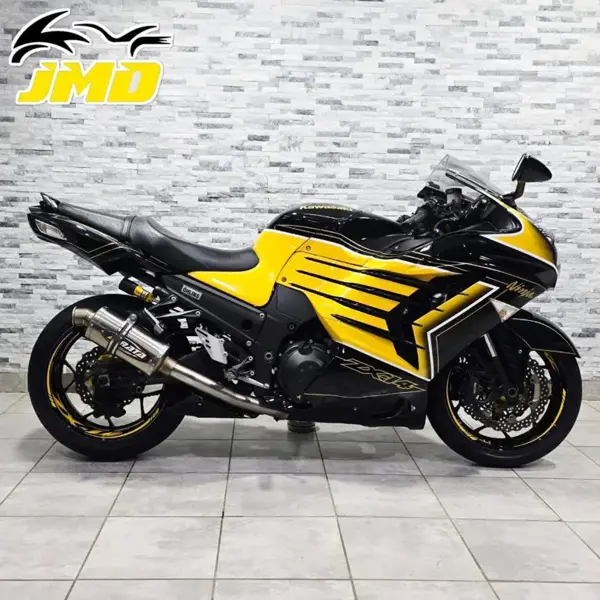

Full 2016 Kawasaki ZZR 1400 Performance Sport Specifications
Comments
Maximum power with RAM Air is 154.5 kW (210 PS at 10,000 rpm. Small windscreen.
Colours
Golden Blazed Green/Metallic Spark Black
Ground Clearance (mm)
125 mm
Ground Clearance (in.)
4.9 inches
Seat Height
800 mm / 31.5 in.
Wheelbase
1,480 mm / 58.3 in.
Height
1,170 mm / 46.1 in.
Length
2,170 mm / 85.4 in.
Width
770 mm / 30.3 in.
Fuel Capacity
22.00 litres / 5.81 gallons
Wet Weight
268.0 kg / 590.8 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
87.93 cubic inches
Displacement (cc)
1441.00 cc
Bore x Stroke (in,)
3.3 x 2.6 inches
Bore x Stroke (mm)
84.0 x 65.0 mm
Fuel System
Injection. 44 mm x 4 (Mikuni)
Compression Ratio
12.3:1
Engine Lubrication
Forced lubrication, wet sump with oil cooler
Ignition
Digital
Starter
Electric
Valve System
4
Clutch
Wet multi-disc, manual
Final Drive
Chain
Gearbox
6-speed
Primary Drive
Sealed chain
Frame Type
Monocoque, pressed-aluminium
Suspension - Front
43 mm inverted fork with top-out springs. Compression damping: 18-way. Rebound damping: 15-way. Spring preload: Fully adjustable.
Suspension - Rear
Bottom-Link Uni-Trak, ?hlins TTX39 rear shock with piggyback reservoir and remote preload adjuster. Compression Damping: 22-wayRebound Damping: 22-way. Spring Preload: Fully adjustable
Rake
23.0°
Trail
93 mm / 3.7 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
9.8 inches
Brakes - Rear Diameter (mm)
250 mm
Brakes - Front
Double disc. Dual radial-mount, Brembo M50 monobloc, opposed 4-piston.
Brakes - Rear
Single disc. Opposed, twin-piston caliper.
Tyres - Front
120/70-ZR17
Tyres - Rear
190/50-ZR17
