Key Specifications
Engine
Four stroke, single cylinder, DOHC, 4 Valves
Power
11.3 kW / 15 hp @ 10500 rpm
Torque
12 Nm / 1.22 kgf-m / 8.85 ft-lb @ 8000 rpm
Fuel Capacity
11 Litres / 2.9 US gal / 2.4 Imp gal
Advertisement

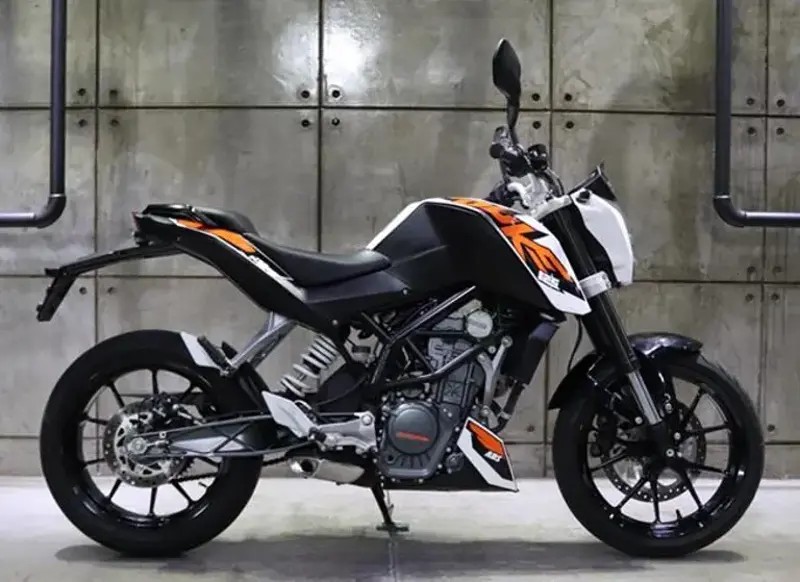

Full 2014 KTM 125 Duke Specifications
Year
2013 - 14
Make Model
KTM 125 Duke
Seat Height
810 mm / 31.8 in
Wheelbase
1367 mm / 53.8 in
Ground Clearance
170 mm / 6.7 in
Dry Weight
127 kg / 280 lbs
Fuel Capacity
11 Litres / 2.9 US gal / 2.4 Imp gal
Displacement
124.7 cc / 7.6 cu-in
Engine Detail
Four stroke, single cylinder, DOHC, 4 Valves
Bore x Stroke
58 x 47 mm
Compression Ratio
14.5:1
Cooling System
Liquid cooled
Fuel Induction
Electronic fuel injection
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 1 Eaton pump
Starter
Electric
Clutch
Multi-disc clutch, operated hydraulically
Final Drive
Chain 5/8 x 1/4" X Ring
Transmission / Drive
6 Speed
Frame Type
Space frame in chrome -molybdenum steel tubes Subframe: steel
Suspension - Front
38 mm WP upside-down fork
Suspension - Rear
WP monoshock.
Steering Head Angle
65°
Wheel Travel - Front
160 mm / 6.2 in
Wheel Travel - Rear
160 mm / 6.2 in
Brakes - Front
Single 280 mm disc
Brakes - Rear
Single 220 mm disc
Tyres - Front
110/70 -17
Tyres - Rear
150/60 -17
