Full Specifications
General
Year
2019
Make Model

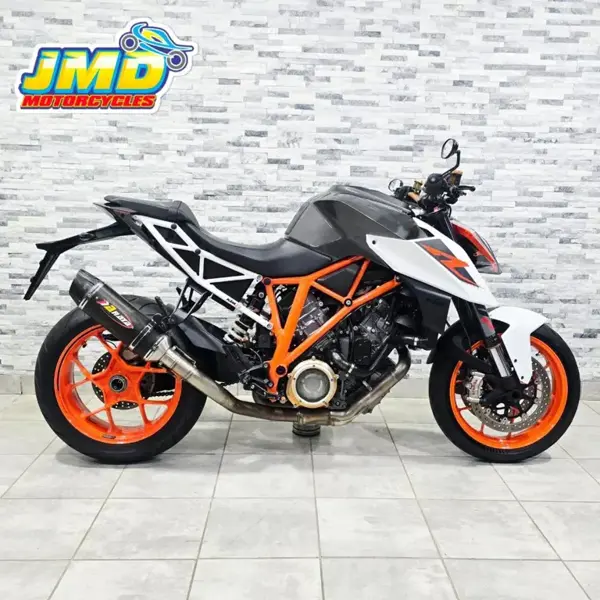

KTM 1290 Super Duke R
Dimensions
Seat Height
835 mm / 32.9 in
Wheelbase
1482 mm / 58.3 in
Ground Clearance
141 mm / 5.5 in
Weights & Capacities
Dry Weight
195 kg / 430 lbs
Fuel Capacity
18 Litres / 4.8 US gal / 4.0 Imp gal Unleaded premium fuel (95 RON)
Performance
Max Power
130.2 kW / 177 hp @ 8870 rpm
Max Torque
141 Nm / 14.4 kgf-m / 104 ft-lb @ 7000rpm
Engine
Displacement
1301 cc / 79.3 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
108 x 71 mm
Compression Ratio
13.2:1
Cooling System
Liquid cooling
Emissions
Euro 4 compliant
Engine Management
Keihin EMS with RWB, double ignition and cruise control
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Pressure lubrication with 3 Eaton pumps
Starter
Electric
EV Specifics
Battery Capacity
12V 11.2Ah
Drivetrain
Clutch
PASC slipper clutch, hydraulically operated
Final Drive
Chain 520 X-ring
Final Drive Ratio
17:38
Primary Drive Ratios
40:76
Transmission / Drive
6 Speed
Chassis
Frame Type
Chromium-Molybdenum steel trellis frame, powder coated
Suspension - Front
WP-USD ø 48 mm fork
Suspension - Rear
WP-Monoshock
Rake
24.9°
Steering Head Angle
65.1°
Trail
102 mm / 4.2 in
Wheel Travel - Front
125 mm / 4.7 in
Wheel Travel - Rear
156 mm / 6.1 in
Wheels & Brakes
Brakes - Front
2 x 320mm Floating discs, Brembo monoblock 4 piston radial fixed calipers
Brakes - Rear
Single disc, Brembo 2 piston fixed calipers
ABS
Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
Tyres - Front
120/70 ZR17 Metzeler M7RR
Tyres - Rear
190/55 ZR17 Metzeler M7RR
Wheels - Front
17x 3.5 in, cast aluminum alloy
Wheels - Rear
17x 6.0 in, cast aluminum alloy
