Full Specifications
General
Year
2023
Make Model

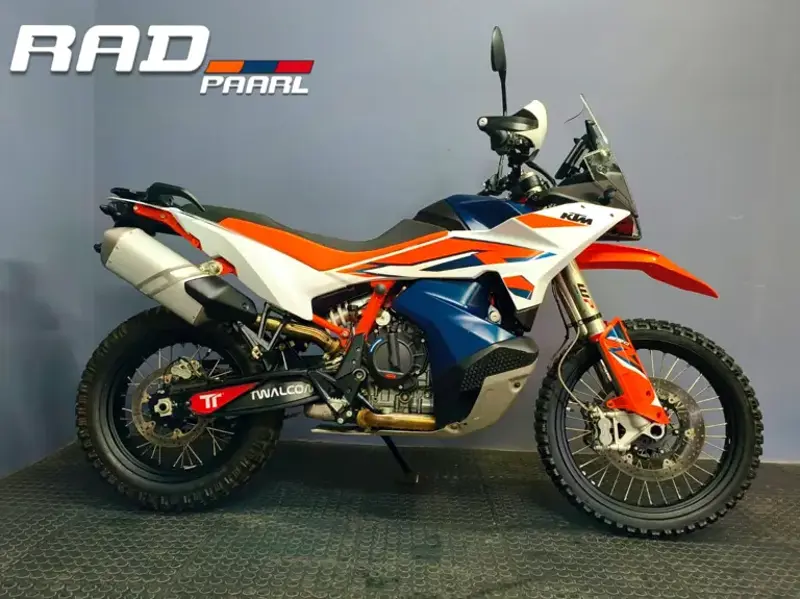

KTM 890 Adventure R
Dimensions
Seat Height
879 mm / 34.6 in
Wheelbase
1529 mm / 60.2 in
Ground Clearance
264 mm / 10.4 in
Weights & Capacities
Fuel Capacity
20 Litres / 5.3 US gal
Wet Weight
210 kg / 464 lbs
Performance
Max Power
78.3 kW / 105 hp @ 8000 rpm
Max Torque
100 Nm / 73.7 lb-ft @ 6500 rpm
Engine
Displacement
889 cc / 54.3 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
90.7 x 68.8 mm
Compression Ratio
13.5:1
Cooling System
Liquid cooled with water/oil heat exchanger
Emissions
Euro 5
Engine Management
Bosch EMS with RBW
Exhaust
Stainless-steel
Fuel Induction
DKK Dell'Orto with 46mm throttle body
Lubrication
Pressure lubrication with 2 oil pumps
Starter
Electric
Drivetrain
Clutch
PASC antihopping clutch, mechanically operated
Final Drive
Chain 520 X-Ring
Transmission / Drive
6 Speed (quickshifter optional)
Chassis
Frame Type
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Suspension - Front
48mm Fully adjustable WP Xplor inverted forks
Suspension - Rear
Linkage-free spring-preload adjustable WP Xplor PDS piggyback shock
Rake
26.3°
Steering Head Angle
63.7°
Wheel Travel - Front
240 mm / 9.4 in
Wheel Travel - Rear
240 mm / 9.4 in
Wheels & Brakes
Brakes - Front
2x 320mm discs with 4-piston radially mounted calipers
Brakes - Rear
Single 260mm disc
ABS
Bosch 9.3 MP incl. Cornering-ABS and offroad mode, disengageable
Tyres - Front
90/90 x 21 Continental Twinduro TKC 80
Tyres - Rear
150/70 x 18 Continental Twinduro TKC 80
Wheels
Wire-spoked
Wheels - Front
2.50 x 21
Wheels - Rear
4.50 x 18
