Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
116 hp / 85 kW @ 9000 pm
Torque
97.Nm / / 71.5 ft/lb @ 7000 rpm
Weight
196.0 kg / 432.1 lbs
Fuel Capacity
19 Litres / 5.0 gal
Advertisement

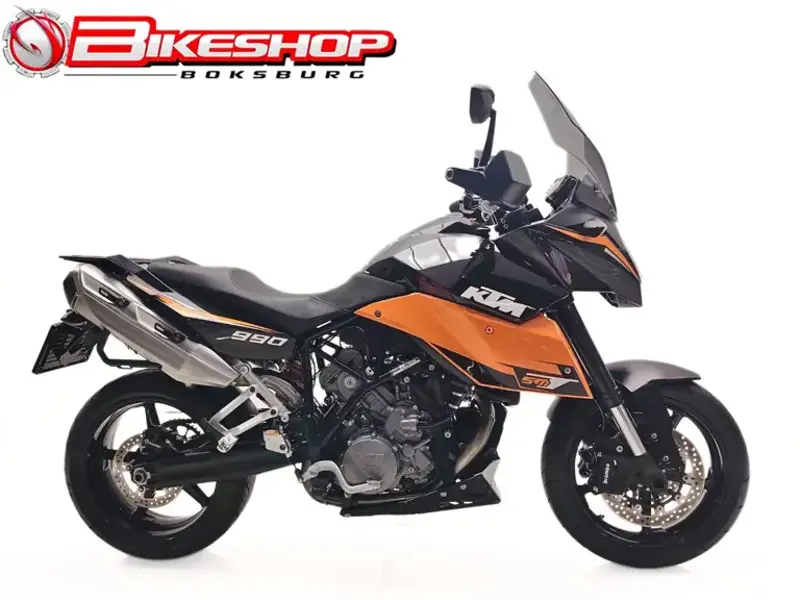

Full 2010 KTM 990 Supermoto T Specifications
Year
2010
Make Model
KTM 990 Supermoto T
Seat Height
855 mm / 33.9
Wheelbase
1505 mm / 59.2 in
Ground Clearance
195 mm / 7.68 in
Dry Weight (kg)
196
Dry Weight
196.0 kg / 432.1 lbs
Fuel Capacity
19 Litres / 5.0 gal
Displacement
999.8 cc / 60.9 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
101 x 62.4mm
Compression Ratio
11.5:1
Cooling System
Liquid cooling,
Exhaust
2 x Premium steel with three-way-catalyser
Fuel Induction
Keihin EMS With FPT fuel injection
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Dry-sump lubrication with 2 rotor pumps
Starter
Electric
Battery Capacity
12 V/11.2 Ah
Clutch
Wet multi-disc clutch, operated hydraulically
Final Drive
Chain 5/8 x 5/16" X Ring
Transmission / Drive
6 Speed
Frame Type
Tubular Chromoly space frame powered coated.
Suspension - Front
48mm WP USD adjustable
Suspension - Rear
WP shock, fully adjustable
Rake
24.4°
Steering Head Angle
65.6°
Trail
109 mm / 4.3 in
Wheel Travel - Front
160 mm / 6.3 in
Wheel Travel - Rear
180 mm / 7.1 in
Brakes - Front
2x 305mm discs 4 piston calipers
Brakes - Rear
Single 240mm disc 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
