Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
129 kW / 175 hp @ 10250 rpm
Torque
127 Nm / 93.6 lb-ft @ 8000 rpm
Weight
186.0 kg / 410.1 lbs
Fuel Capacity
16.5 Litres / 4.3 gal
Advertisement

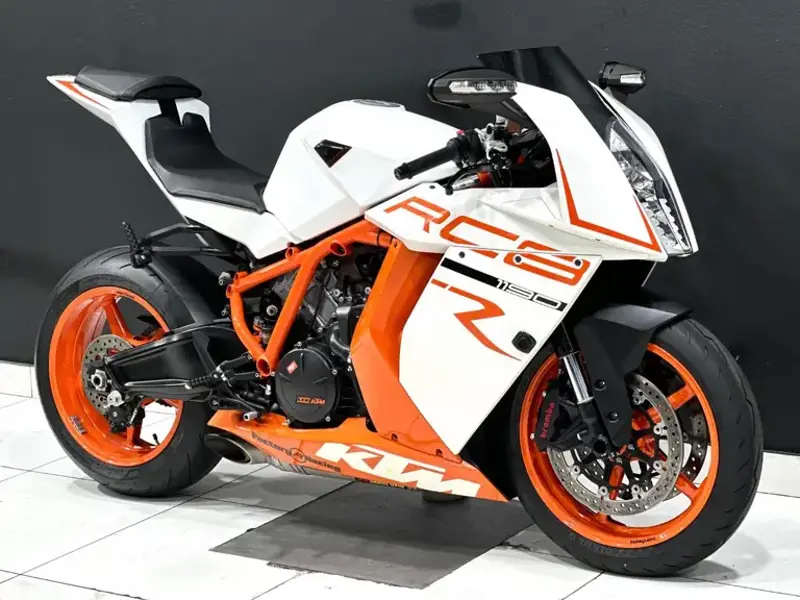

Full 2012 KTM RC8R 1190 Specifications
Year
2012
Make Model
KTM RC8R 1190
Seat Height
805 mm - 825 mm / 31.69in - 32.48in
Wheelbase
1425 mm / 56.1 in
Ground Clearance
110 mm / 4.3 in
Dry Weight (kg)
186
Dry Weight
186.0 kg / 410.1 lbs
Fuel Capacity
16.5 Litres / 4.3 gal
Displacement
1195 cc / 73.0 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
105 x 69 mm
Compression Ratio
13.5 :1
Cooling System
Liquid cooling
Exhaust
Stainless steel underfloor silencer with regulated catalytic converter
Fuel Induction
Keihin EFI throttle body 52 mm
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Pressure lubrication with 3 Eaton pumps
Starter
Electric
Clutch
Wet, multiple discs, hydraulic operated
Final Drive
Chain 5/8 x 5/16" X Ring
Primary Drive Ratios
40:76
Secondary Drive Ratio
17:37
Transmission / Drive
6 Speed claw shifted
Frame Type
Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar
Suspension - Front
43mm WP Upside down adjustable
Suspension - Rear
WP shock, fully adjustable
Steering Head Angle
66.7°
Trail
97 mm / 3.82 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
125 mm / 4.9 in
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 240mm disc
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
