Full Specifications
General
Year
2014 - 15
Make Model

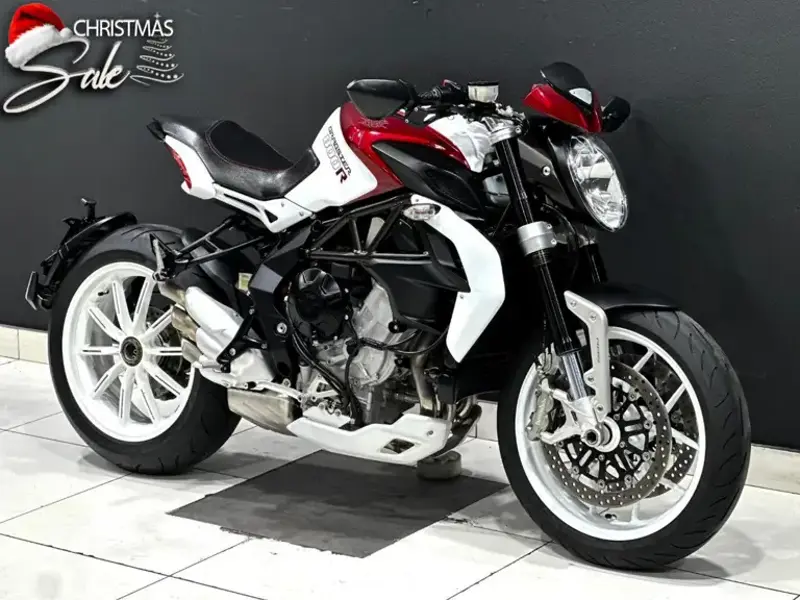

MV Agusta Dragster 800
Dimensions
Seat Height
811 mm / 31.9 in
Wheelbase
1380 mm / 54.3 in
Ground Clearance
160 mm / 6.3 in
Length
2060 mm / 81.0 in
Width
825 mm / 32.4 in
Weights & Capacities
Dry Weight
167 Kg / 368.2 lbs
Fuel Capacity
16.6 Litres / 4.3 US gal
Performance
Max Power
92 kW / 125 hp @ 11600 rpm
Max Torque
81 Nm / 8.25 kgf-m @ 9600 rpm.
Engine
Displacement
798 cc / 48.7 cu-in
Engine Detail
Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,
Bore x Stroke
79 x 54.3 mm
Compression Ratio
13.3;1
Cooling System
Liquid Cooled
Fuel Induction
Integrated ignition - injection system MVICS (Motor & Vehicle Integrated Control System) with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention
Fuel Reserve
5 Litres 1.3 US gal
Ignition
Multipoint electronic injection
Starter
Electric
Drivetrain
Clutch
Wet, multi-disc with mechanical drive Cassette style
Final Drive
Chain
Final Drive Ratio
16/41
Gear Ratios
1st: 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29
Transmission / Drive
6 Speed
Chassis
Frame Type
ALS Steel tubular trellis Aluminium alloy
Suspension - Front
Marzocchi "UPSIDE DOWN" telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment 43 mm
Suspension - Rear
Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Aluminium alloy
Trail
95 mm / 3.74 in.
Wheel Travel - Front
125 mm / 4.9 in
Wheel Travel - Rear
125 mm / 4.9 in
Electrical Systems
Alternator
350 Wat 5000 r.p.m. 12V-8.6Ah
Wheels & Brakes
Brakes - Front
2x 320mm floating discs 4 piston calipers
Brakes - Rear
Single 220mm disc 2 piston caliper
Tyres - Front
120/70 - ZR 17
Tyres - Rear
200/50 - ZR 17
Wheels - Front
Aluminium alloy 3.50 " x 17 '
Wheels - Rear
Aluminium alloy 5.50 " x 17 '
