Key Specifications
Engine
In-line four, four-stroke
Power
148.6 kW / 199.2 hp @ 13200rpm
Torque
117.6 Nm / 86.7 lb-ft @ 10800rpm
Weight
203.0kg / 447.5lbs
Fuel Capacity
16 Litres / 3.5 US gal
Advertisement

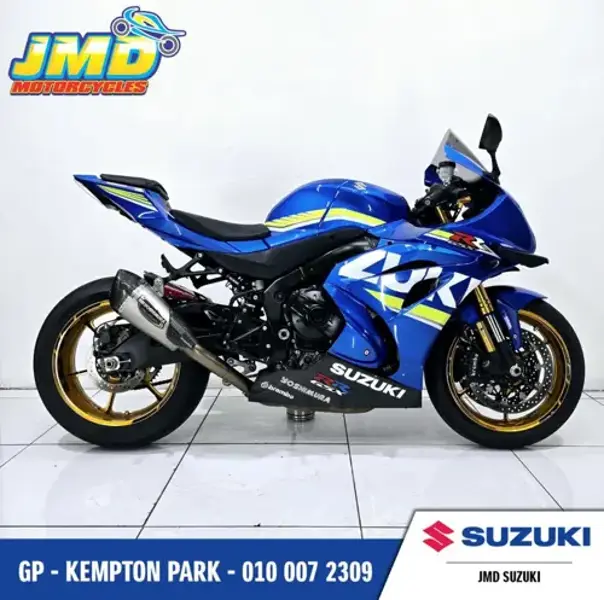

Full 2017 Suzuki GSX-R 1000R Specifications
Comments
Push-button selection of three performance settings.
Year
2017
Make Model
Suzuki GSX-R 1000R
Warranty
12 month unlimited mileage limited warranty.
Ground Clearance (mm)
130 mm
Ground Clearance (in.)
5.1 inches
Seat Height
825 mm / 32.5 in.
Wheelbase
1410mm / 55.5 in
Ground Clearance
130 mm / 5.1 in
Height
1150mm / 45.3 in
Length
2075 mm / 81.7in
Width
710 mm / 28 in
Fuel Capacity
16 Litres / 3.5 US gal
Wet Weight
203.0kg / 447.5lbs
Engine Type
In-line four, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Displacement
998.6 cc / 60.9 cub. in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Fuel System
Injection
Bore x Stroke
76.0 x 55.1 mm
Compression Ratio
13.2:1
Cooling System
Liquid cooled
Engine Lubrication
Wet sump with oil cooler
Exhaust
Titanium
Fuel Induction
Fuel Injection
Ignition
Electronic ignition Transistorized
Lubrication
Wet sump
Starter
Electric
Valve System
4
Clutch
Hydraulically-actuated multiplate wet clutch.
Final Drive
Chain, DID50VAZ, 114 links
Gearbox
6-speed
Primary Drive
Chain, DID50VAZ, 114 links
Transmission / Drive
6 Speed, constant mesh
Frame Type
Aluminum
Suspension - Front
IInverted telescopic, coil spring, oil damped
Suspension - Rear
Link type, coil spring, oil damped
Rake
23.2°
Seat
Optional single seat.
Trail
94 mm / 3.7 in
Wheel Travel - Front
120 mm / 4.7 in.
Wheel Travel - Rear
130 mm / 5.1 in.
Instrumentation
Full LCD with black face
Lighting system
LED headlight
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2 x 320mm Discs radial mount Brembo 4-piston calipers
Brakes - Rear
Single 220mm disc, Nissin, 1-piston
Tyres - Front
120/70ZR17M/C (58W) tubeless
Tyres - Rear
190/50 ZR17 M/C (73W), tubeless
