Key Specifications
Engine
Four stroke, 270° Crank angle parallel twin, SOHC, 8 valves
Power
40.5 kW / 55 hp @ 5900 rpm
Torque
80 Nm / 8.16 kgf-m / 59 ft-lb @ 3230 rpm
Fuel Capacity
12 L / 3.2 US gal / 2.7 Imp gal
Advertisement

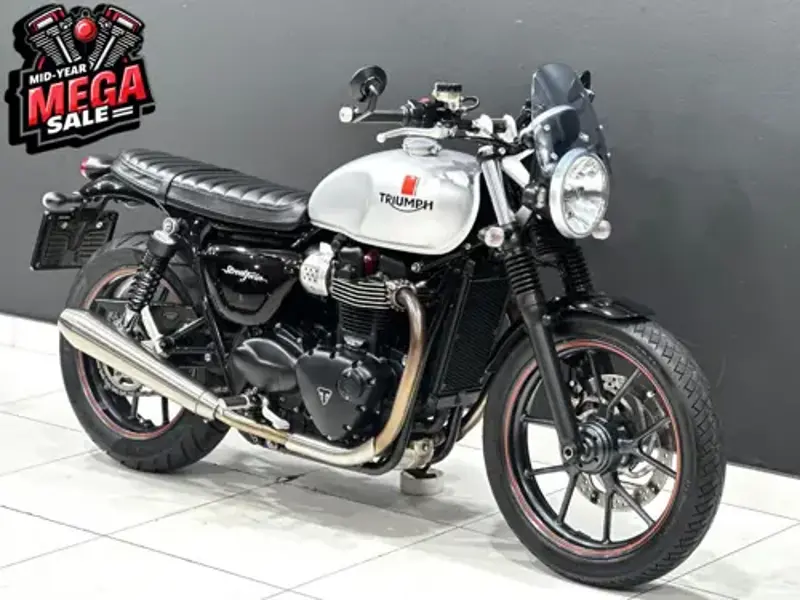

Full 2017 Triumph Street Twin Specifications
Year
2016 - 17
Colours
Jet black, Crnberry red, Matt black, Phantom black, Aluminium silver
Make Model
Triumph Street Twin
Seat Height
750 mm / 29.5 in
Wheelbase
1415 mm / 55.7 in
Height
1114 mm / 43.9 in (without mirrors)
Width
785 mm / 30.9 in
Dry Weight
198 kg / 437 lbs
Fuel Capacity
12 L / 3.2 US gal / 2.7 Imp gal
Displacement
900 cc / 54.9 cu in
Engine Detail
Four stroke, 270° Crank angle parallel twin, SOHC, 8 valves
Bore x Stroke
84.6 x 80 mm
Compression Ratio
10.55:1
Cooling System
Liquid cooled
Exhaust
Brushed stainless steel, 2 into 2 exhaust system with twin silencers
Fuel Consumption
3.87 L/100 km / 25.8 km/l / 60.8 US mpg / 73.0 Imp mpg
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate, slip-assist
Final Drive
Chain, X-ring
Transmission / Drive
5-Speed
Frame Type
Tubular steel cradle, twin-sided tubular steel swing-arm
Suspension - Front
Kayaba 41 mm fork
Suspension - Rear
Kayaba twin shocks with adjustable preload
Rake
25.1°
Trail
102.4 mm / 4.0 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
Single 310mm disc, Nissin 2 piston floating caliper, ABS
Brakes - Rear
Single 255mm disc, Nissin 2 piston floating caliper, ABS
Tyres - Front
100/90-R18
Tyres - Rear
150/70-R17
Wheels - Front
2.75 x 18, Cast aluminium alloy, multi-spoke
Wheels - Rear
4.25 x 17, Cast aluminium alloy, multi-spoke
