Key Specifications
Engine
Four stroke, 270° crank angle parallel-Twin, SOHC. 4 valve per cylinder.
Power
71.5 kW / 96 hp / @ 6750 rpm
Torque
111.9 Nm / 11.4 kgf-m / 82.6 lb-ft. @ 4950 rpm
Fuel Capacity
12.5 Litres / 3.8 US Gal / 2.7 Imp gal
Advertisement

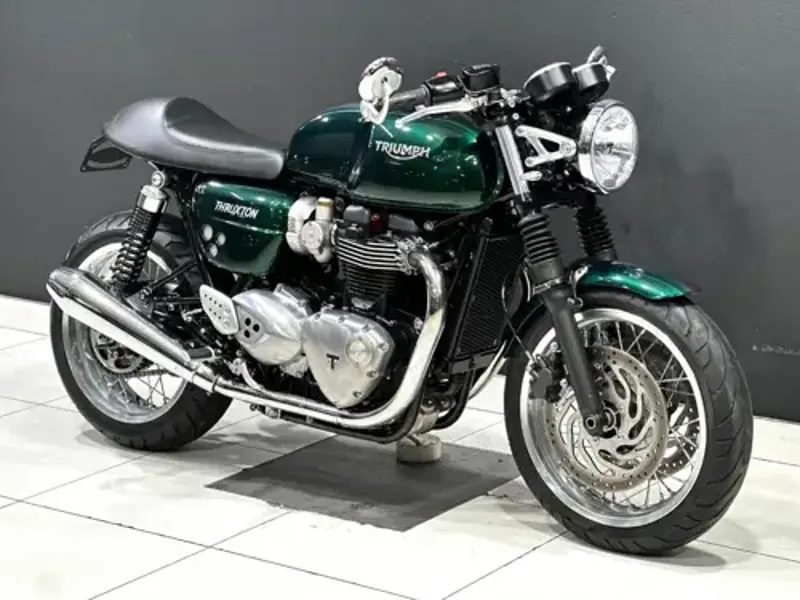

Full 2017 Triumph Thruxton 1200 Specifications
Year
2016 - 17
Make Model
Triumph Thruxton 1200
Seat Height
805 mm / 31.7 in
Wheelbase
1415 mm / 55.7 in
Height
1030 mm / 40.6 in without mirrors
Length
2105 mm / 82.9 in
Width
745 mm / 29.3 in
Dry Weight
206 kg / 454 lbs
Fuel Capacity
12.5 Litres / 3.8 US Gal / 2.7 Imp gal
Displacement
1200 cc / 73.2 cu-in
Engine Detail
Four stroke, 270° crank angle parallel-Twin, SOHC. 4 valve per cylinder.
Bore x Stroke
97.6 x 80 mm
Compression Ratio
11.0:1
Cooling System
Liquid cooled
Emissions
EURO 4 Compliant, CO2 - 106.0 g/km
Exhaust
Chromed 2 into 2 exhaust system with twin chrome silencers
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital electronic
Starter
Electric
Clutch
Wet, multi-plate assist clutch
Final Drive
Chain, X-ring
Transmission / Drive
6 Speed
Frame Type
Tubular steel cradle, Twin-sided, aluminum swingarm
Suspension - Front
Kayaba 41mm cartridge forks
Suspension - Rear
Kayaba twin shocks with adjustable preload
Rake
22.7°
Trail
90.8 mm / 3.57 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
2 x 310mm discs, Nissin 2-piston axial floating calipers, ABS
Brakes - Rear
Single 220mm disc, Nissin 2-piston axial floating caliper, ABS
Tyres - Front
120/70 ZR17 - Pirelli Angel GT
Tyres - Rear
160/60 ZR17 - Pirelli Angel GT
Wheels - Front
32-spoke 17 x 3.5 in
Wheels - Rear
32-spoke 17 x 5 in
