Key Specifications
Torque
114.00 Nm (11.6 kgf-m or 84.1 ft.lbs) @ 6000
Weight
260.8 kg / 575.0 lbs
Fuel Capacity
22.71 litres / 6.00 gallons
Advertisement

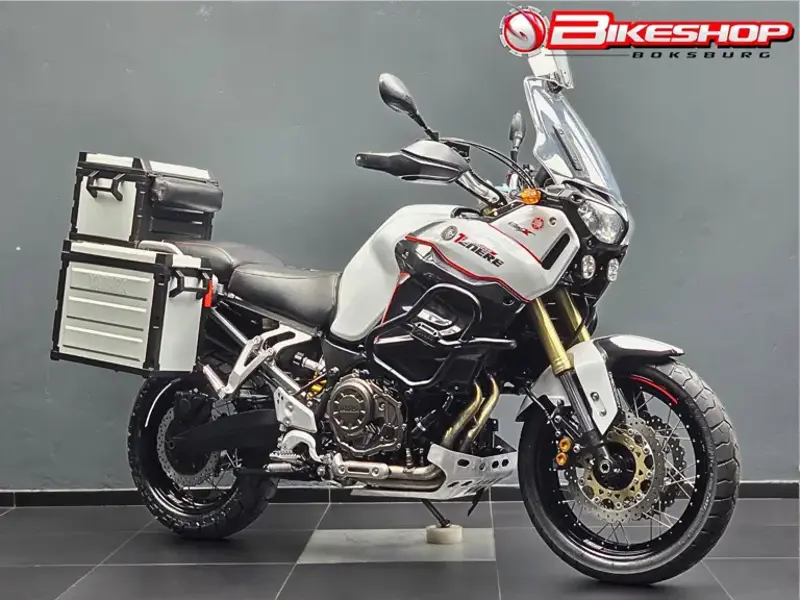

Full 2011 Yamaha XT1200Z Super Tenere Specifications
Colours
Impact Blue, Raven
Warranty
1 Year (Limited Factory Warranty)
Ground Clearance (mm)
99 mm
Ground Clearance (in.)
3.9 inches
Seat Height
845 mm / 33.3 in.
Wheelbase
1,539 mm / 60.6 in.
Height
1,410 mm / 55.5 in.
Length
2,250 mm / 88.6 in.
Width
980 mm / 38.6 in.
Oil Capacity (Quarts)
0.28 quarts
Oil Capacity (l)
4.20 litres
Fuel Capacity
22.71 litres / 6.00 gallons
Wet Weight
260.8 kg / 575.0 lbs
Fuel Control
DOHC
Engine Type
Twin, four-stroke
Displacement (ci)
73.16 cubic inches
Displacement (cc)
1199.00 cc
Bore x Stroke (mm)
98.0 x 79.5 mm
Bore x Stroke (in,)
3.9 x 3.1 inches
Fuel System
Injection. Fuel Injection with YCC-T
Compression Ratio
11.0:1
Engine Lubrication
Wet sump
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
2
Clutch
Multiplate wet clutch
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Frame Type
Steel main frame
Suspension - Front
Telescopic fork, 43mm tube, adjustable preload, compression and rebound damping, 7.48-in travel
Suspension - Rear
Monoshock, adjustable preload and rebound damping, 7.48-in of travel
Rake
28.0°
Wheel Travel - Front
127 mm / 5.0 in.
Wheel Travel - Rear
127 mm / 5.0 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
11.1 inches
Brakes - Rear Diameter (mm)
282 mm
Brakes - Front
Double disc. ABS
Brakes - Rear
Single disc. ABS
Tyres - Front
110/80-R19
Tyres - Rear
150/70-R17
