Full Specifications
General
Year
2013 - 14
Make Model

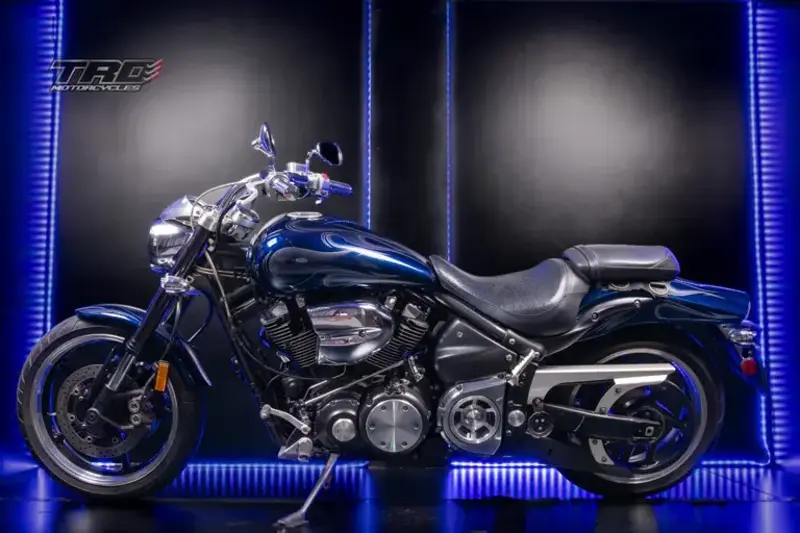

Yamaha XVS 1300 Stryker
Dimensions
Seat Height
670 mm / 26.4 in
Wheelbase
1750 mm / 68.9 in
Height
1130mm / 44.5 in
Length
2530 mm / 99.6 in
Width
860 mm / 33.9 jn
Weights & Capacities
Fuel Capacity
15 Litres / 3.9 US gal
Wet Weight
293 kg / 644.6 lbs
Performance
Max Torque
11.3 kgf-m / 81.8 ft-lb @ 4000 rpm
Engine
Displacement
1304 cc / 80 cu-in
Engine Detail
Four stroke, V-twin; SOHC, 4 valves per cylinder .
Bore x Stroke
100.0 x 83.0 mm
Compression Ratio
9.5;1
Cooling System
Liquid cooled
Fuel Induction
Dual bore 40mm Fuel Injection
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Drivetrain
Clutch
Multi plate wet clutch
Final Drive
Belt
Transmission / Drive
5 Speed
Chassis
Frame Type
Steel double cradle
Suspension - Front
41mm telescopic fork
Suspension - Rear
Adjustable link Monocross
Rake
29.0°
Trail
102 mm / 4.0 in
Wheels & Brakes
Brakes - Front
Single 310 mm discs
Brakes - Rear
Single 310mm disc
Tyres - Front
120/70 -R21
Tyres - Rear
210/40 -R18
