Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Power
30.9 kW 41.4 hp @ 10750 rpm
Torque
29.6 Nm / 3.0 kg-m @ 9000 rpm
Fuel Capacity
14 Litres / 3.7 US gal
Advertisement

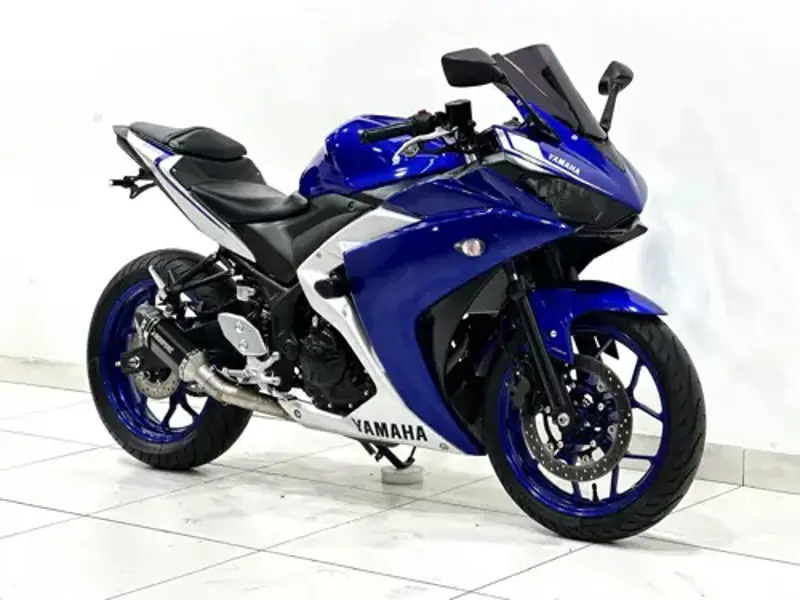

Full 2018 Yamaha YZF-R 3 Specifications
Year
2018
Make Model
Yamaha YZF-R 3
Seat Height
779.7 mm / 30.7 in
Wheelbase
1379.2 mm / 54.3 in
Ground Clearance
160 mm / 6.2 in
Height
1 135.3 mm / 44.7 in
Length
2090 mm / 82.3 in
Width
718.8 mm / 28.3 in
Fuel Capacity
14 Litres / 3.7 US gal
Wet Weight
169 kg / 373 lbs
Displacement
321 cc / 19.5 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Bore x Stroke
68.0 x 44.1mm
Compression Ratio
11.2:1
Cooling System
Liquid cooled
Fuel Induction
Electronic Fuel Injection, 32 mm throttle body
Ignition
TCI: Transistor Controlled Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multiple-disc coil spring
Final Drive
O-ring chain
Transmission / Drive
Constant Mesh, 6-speed
Frame Type
Delta box
Suspension - Front
41mm KYBø telescopic fork
Suspension - Rear
Adjustable KYB® single shock
Rake
25°
Trail
93.9 mm / 3.7 in
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
124.4 mm / 4.9 in
Brakes - Front
Single 298mm disc 2 piston caliper
Brakes - Rear
Single 220mm disc 1 piston caliper
Tyres - Front
110/70-17M/C 54H
Tyres - Rear
140/70-17M/C 66H
