Key Specifications
Engine
In-line four, four-stroke
Weight
200.9 kg / 443.0 lbs
Fuel Capacity
17.03 litres / 4.50 gallons
Advertisement

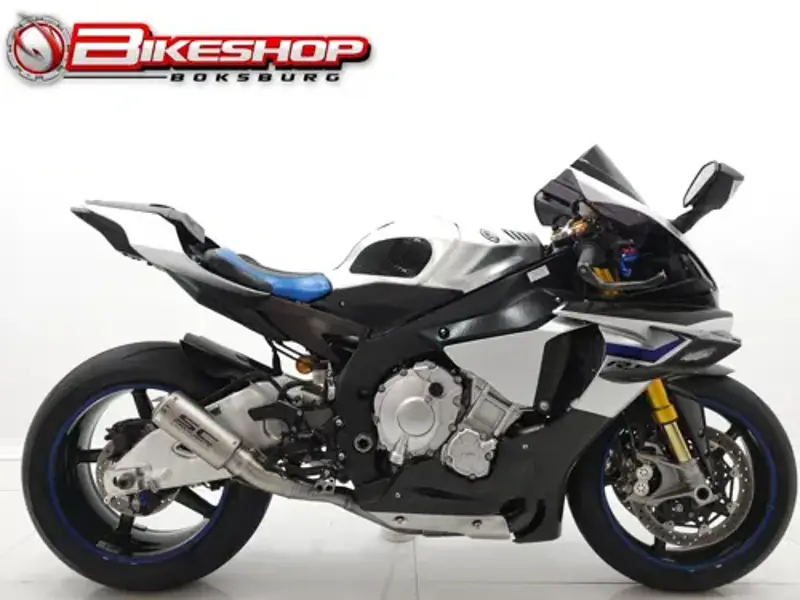

Full 2015 Yamaha YZF-R1M Specifications
Comments
Traction Control System.
Colours
Carbon Fiber/Liquid Metal
Warranty
1 Year Limited Factory Warranty
Seat Height
861 mm / 33.9 in.
Wheelbase
1,405 mm / 55.3 in.
Height
1,151 mm / 45.3 in.
Length
2,055 mm / 80.9 in.
Width
691 mm / 27.2 in.
Fuel Capacity
17.03 litres / 4.50 gallons
Wet Weight
200.9 kg / 443.0 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
CO2
160.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
79.0 x 50.9 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Engine Detail
Crossplane crankshaft technology. Titanium intake valves.
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
13.0:1
Fuel Consumption
6.92 litres/100 km (14.5 km/l or 33.99 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Valve System
4
Clutch
Multiplate slipper clutch
Final Drive
Chain
Gearbox
6-speed
Primary Drive
O-ring chain
Frame Type
Aluminum Deltabox
Suspension - Front
43mm ?hlins electronic suspension w/ inverted fork; fully adjustable
Suspension - Rear
?hlins electronic suspension w/ single shock w/piggyback reservoir, 4-way adjustable
Rake
24.0°
Trail
102 mm / 4.0 in.
Wheel Travel - Front
119 mm / 4.7 in.
Wheel Travel - Rear
102 mm / 4.0 in.
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc. ABS. Hydraulic. Four-piston calipers.
Brakes - Rear
Single disc. ABS. Hydraulic.
Tyres - Front
120/70-ZR17
Tyres - Rear
200/55-ZR17
