Key Specifications
Engine
In-line four, four-stroke
Weight
189.1 kg / 417.0 lbs
Fuel Capacity
17.03 litres / 4.50 gallons
Advertisement

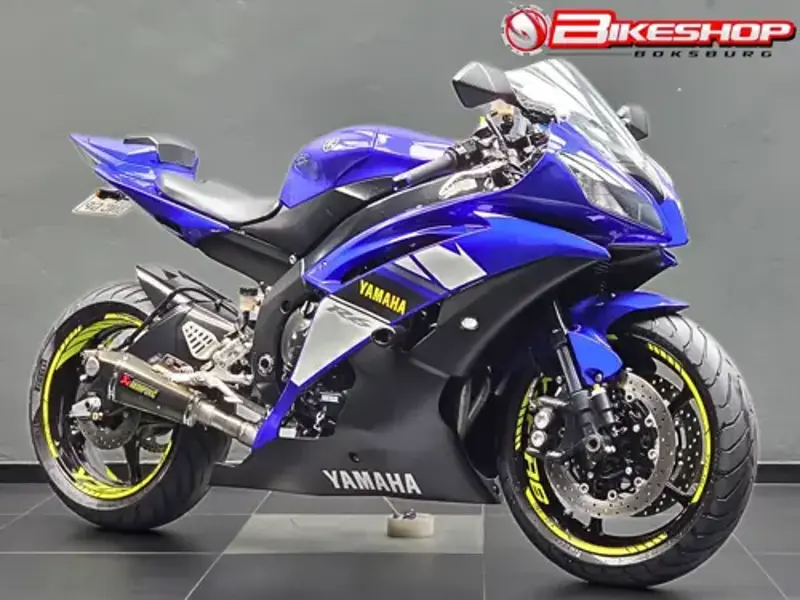

Full 2010 Yamaha YZF-R6 Specifications
Colours
Raven, Team Yamaha Blue/White, Pearl White
Seat Height
851 mm / 33.5 in.
Wheelbase
1,379 mm / 54.3 in.
Height
1,100 mm / 43.3 in.
Length
2,040 mm / 80.3 in.
Width
701 mm / 27.6 in.
Oil Capacity (l)
3.40 litres
Oil Capacity (Quarts)
0.22 quarts
Fuel Capacity
17.03 litres / 4.50 gallons
Wet Weight
189.1 kg / 417.0 lbs
Bore x Stroke (in,)
2.6 x 1.7 inches
Bore x Stroke (mm)
67.0 x 42.5 mm
CO2
136.4 CO
Displacement (cc)
599.00 cc
Displacement (ci)
36.55 cubic inches
Engine Type
In-line four, four-stroke
Fuel Control
DOHC
Fuel System
Injection. Fuel Injection with YCC-T and YCC-I
Compression Ratio
13.1:1
Fuel Consumption
5.88 litres/100 km (17.0 km/l or 40.00 mpg)
Ignition
TCI: Transistor Controlled Ignition
Starter
Electric
Final Drive
Chain
Gearbox
6-speed
Suspension - Front
41mm inverted fork
Suspension - Rear
Single shock
Rake
24.0°
Trail
97 mm / 3.8 in.
Wheel Travel - Front
102 mm / 4.0 in.
Wheel Travel - Rear
102 mm / 4.0 in.
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
180/55-ZR17
