Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Power
55 kW / 74.8 hp @ 8750 rpm
Torque
68 Nm / 50 lb-ft @ 6500 rpm
Fuel Capacity
13 Litres / 3.4 US gal
Advertisement

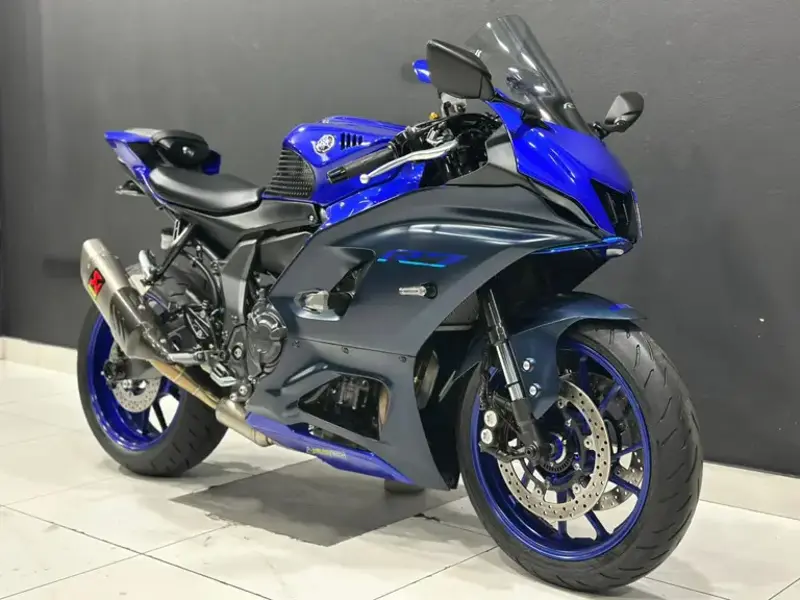

Full 2022 Yamaha YZF-R7 Specifications
Year
2022
Make Model
Yamaha YZF-R7
Seat Height
835 mm / 32.9 in
Wheelbase
1395 mm / 54.9 in
Ground Clearance
135 mm / 5.3 in
Height
1160 mm / 45.7 in
Length
2070 mm / 81.5 in
Width
705 mm / 27.8 in
Fuel Capacity
13 Litres / 3.4 US gal
Wet Weight
188 kg / 414 lbs
Displacement
689 cc / 42.04 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
80 x 68.6 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Emissions
Euro 5
Exhaust
Integrated 2-into-1 exhaust pipes and muffler
Fuel Induction
Mikuni 38 mm dual bore throttle body F.I.
Ignition
TCI Transistor Controlled Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Multiplate wet clutch, with Assist & Slipper clutch
Final Drive
Chain
Transmission / Drive
6 Speed constant mesh
Frame Type
A high-strength steel frame with a rigid-mount aluminum center
Suspension - Front
41mm Telescopic fork, adjustable for preload, rebound and compression
Suspension - Rear
Linked-type Monocross shock, adjustable preload and rebound
Rake
23°
Trail
90 mm
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
130 mm / 5.1 in
Brakes - Front
2x 298mm discs, 4-piston calipers
Brakes - Rear
Single 245mm disc, single piston caliper
ABS
Standard
Tyres - Front
120/70ZR17M/C (58W) Tubeless
Tyres - Rear
180/55ZR17M/C (73W) Tubeless
