Key Specifications
Engine
Two cylinder boxer
Power
62.5 kW / 85 hp @ 8000 rpm
Torque
80 Nm / 59 lb-ft @ 5800 rpm
Top Speed
229.0 km/h / 107 mph
Fuel Capacity
16 Litres / 4.2 US gal
Advertisement

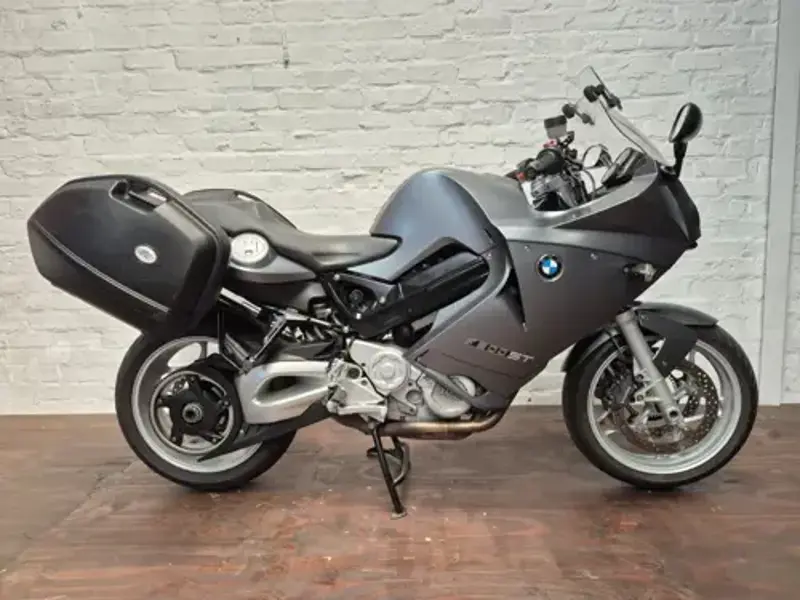

Full 2007 BMW F 800ST Specifications
Year
2007
Colours
Blue Metallic, Graphitan Metallic
Make Model
BMW F 800ST
Seat Height
820 mm / 32.2 in (low seat: 790 mm / 31.1 in)
Wheelbase
1,466 mm / 57.7 in.
Height
1155 or 1225 mm / 45.5 or 48.2 in (excl. mirrors)
Length
1155 or 1225 mm / 45.5 or 48.2 in (excl. mirrors)
Width
860 mm / 33.9 in (incl. mirrors)
Dry Weight
187 kg / 412 lbs
Fuel Capacity
16 Litres / 4.2 US gal
Stroke
4
Engine Type
Two cylinder boxer
Displacement
798 cc / 47.7 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic fuel injection
Bore x Stroke
82 x 75.8 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Fuel Consumption
5.0 L/100 km / 20.1 km/l / 47 US mpg
Fuel Induction
Electronic intake injection
Ignition
Knock control and oxygen sensors
Starter
Electric
Valve System
2
Battery Capacity
12 V / 14 Ah, maintenance-free
Clutch
Cable-operated multiplate-plate wet clutch
Final Drive
Belt
Gear Ratios
1st 2.46:1 / 2nd 1.75:1 / 3rd 1.38:1 / 4th 1.17:1 / 5th 1.04:1 / 6th 0.96:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Frame Type
Bridge-type aluminium frame
Suspension - Front
43mm Telescopic forks
Suspension - Rear
Die-cast aluminium single sided swinging arm with rear wheal axle and eccentric adjustment, central spring stud , spring pre-loaded hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Steering Head Angle
64.2°
Trail
95 mm / 3.7 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
140 mm / 5.5 in
Alternator
Three-phase alternator 400 W
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x 320mm discs, 4 piston calipers
Brakes - Rear
Single 265mm disc, 2 piston caliper
Rims - Front
3.50 x 17
Rims - Rear
5.50 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Cast aluminium
