Key Specifications
Power
62.5 kW / 85 hp @ 8000 rpm
Torque
80 Nm / 59 lb-ft @ 5800 rpm
Top Speed
229.0 km/h / 107 mph
Fuel Capacity
16.00 litres
Advertisement

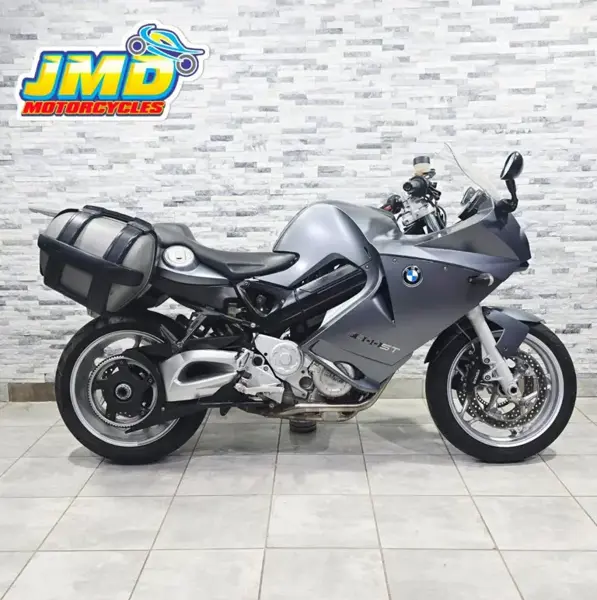

Full 2008 BMW F 800ST Specifications
Year
2008
Make Model
BMW F 800ST
Width (mm)
21,844 mm
Width (in.)
860.0 inches
Wheelbase (mm)
1,466 mm
Wheelbase (in.)
57.7 inches
Seat Height (mm)
820 mm
Seat Height (in.)
32.3 inches
Length (mm)
2,082 mm
Length (in.)
82.0 inches
Seat Height
820 mm / 32.2 in (low seat: 790 mm / 31.1 in)
Height
1155 or 1225 mm / 45.5 or 48.2 in (excl. mirrors)
Length
1155 or 1225 mm / 45.5 or 48.2 in (excl. mirrors)
Width
860 mm / 33.9 in (incl. mirrors)
Wet Weight (lbs.)
449.7 pounds
Wet Weight (kg)
204.0 kg
Fuel Capacity (l)
16.00 litres
Fuel Capacity (gal.)
4.23 gallons
Dry Weight (lbs.)
401.2 pounds
Dry Weight (kg)
182
Dry Weight
187 kg / 412 lbs
Fuel Capacity
16 Litres / 4.2 US gal
Bore x Stroke (in,)
3.2 x 3.0 inches
Bore x Stroke (mm)
82.0 x 75.6 mm
Displacement (cc)
798.00 cc
Displacement (ci)
48.69 cubic inches
Engine Type
Twin
Fuel Reserve (gal.)
0.53 gallons
Fuel Reserve (l)
2.00 litres
Stroke
4
Displacement
798 cc / 47.7 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection / digital engine management (BMS-K)
Bore x Stroke
82 x 75.8 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Fuel Consumption
5.0 L/100 km / 20.1 km/l / 47 US mpg
Fuel Induction
Electronic intake injection
Ignition
Knock control and oxygen sensors
Starter
Electric
Valve System
4
Battery Capacity
12 V / 14 Ah, maintenance-free
Clutch
Cable-operated multiplate-plate wet clutch
Final Drive
Belt
Gear Ratios
1st 2.46:1 / 2nd 1.75:1 / 3rd 1.38:1 / 4th 1.17:1 / 5th 1.04:1 / 6th 0.96:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Trail (in.)
3.7 inches
Trail (mm)
95 mm
Wheel Travel - Front (in.)
5.5 inches
Wheel Travel - Front (in.)
5.5 inches
Wheel Travel - Front (mm)
140 mm
Wheel Travel - Front (mm)
140 mm
Wheel Travel - Rear (in.)
5.5 inches
Wheel Travel - Rear (mm)
140 mm
Frame Type
Bridge-type aluminium frame
Suspension - Front
43mm Telescopic forks
Suspension - Rear
Die-cast aluminium single sided swinging arm with rear wheal axle and eccentric adjustment, central spring stud , spring pre-loaded hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rake
25.8°
Steering Head Angle
64.2°
Trail
95 mm / 3.7 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
140 mm / 5.5 in
Alternator
Three-phase alternator 400 W
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front
2 x 320mm discs, 4 piston calipers
Brakes - Rear
Single 265mm disc, 2 piston caliper
Rims - Front
3.50 x 17
Rims - Rear
5.50 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Cast aluminium
