Key Specifications
Engine
Single cylinder, four-stroke
Power
25 kW / 34 hp @ 9250 rpm
Torque
28 Nm / 20.7 ft-lb @ 7500 rpm
Top Speed
143.0 km/h / 88.9 mph
Weight
164 kg / 361.5 lbs
Fuel Capacity
11 Litres / 2.9 US gal
Advertisement

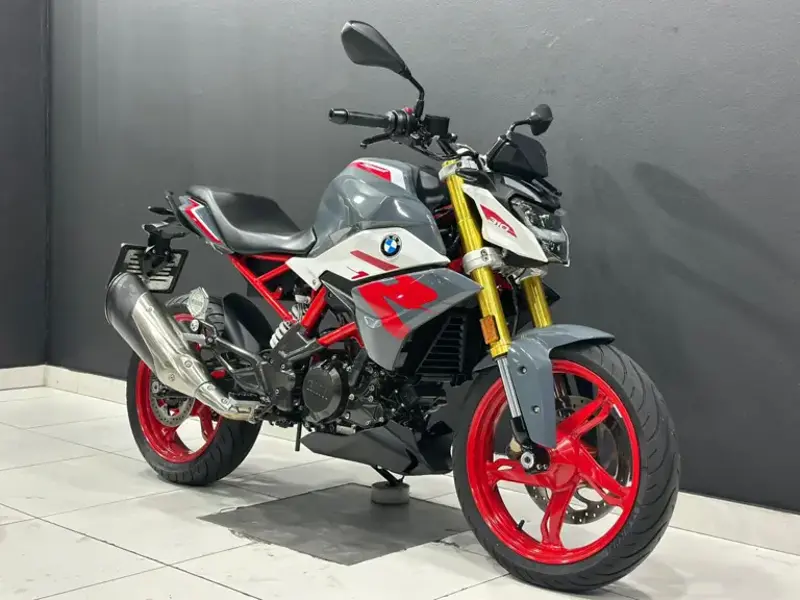

Full 2022 BMW G 310R Specifications
Year
2022
Colours
Limestone Metallic, Cosmic Black, Vibrant Kyanite Blue Metallic
Make Model
BMW G 310R
Warranty
3-years or 36,000 miles warranty
Seat Height
785 mm / 30.9 in OA low seat: 770 mm / 30.3 in OE high seat: 800 mm / 31.4 in
Wheelbase
1380 mm / 54.3 in
Height
1080 mm / 42.5 in
Length
2005 mm / 78.9 in
Width
849 mm / 33.4 in
Oil Capacity (Quarts)
1.8 US quarts
Oil Capacity (l)
1.70 litres
Dry Weight
158 kg / 348.3 lbs
Fuel Capacity
11 Litres / 2.9 US gal
Wet Weight
164 kg / 361.5 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Single cylinder, four-stroke
CO2
77.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement
313 cc / 19.1 cu in
Engine Detail
Single cylinder, DOHC and cam followers, 4 valves
Fuel System
Injection. Electric throttle Ride by wire
Bore x Stroke
80 x 62.1 mm
Compression Ratio
10.9:1
Cooling System
Liquid Cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Engine Lubrication
Wet sump
Fuel Consumption
3.33 litres/100 km (30.0 km/l or 70.64 mpg)
Fuel Induction
Electronic fuel injection
Fuel Reserve
1.00 litres / 0.26 US gallons
Idle Speed
1600 +/- 100 RPM
Spark Plug
NGK LMAR9D-J
Starter
Electric
Valve System
4
Battery Capacity
12 V / 8 Ah, maintenance-free
Clutch
Multi-disc oil bath (anti-hopping) with self-reinforcement
Final Drive
Endless X-ring chain with shock damping in rear wheel hub
Gearbox
6-speed
Primary Drive
X-ring chain with shock absorption in the real wheel hub
Sprocket
16/40 (front/rear)
Transmission / Drive
6-Speed, constant-mesh
Fork Tube Size (in.)
1.6 inches
Fork Tube Size (mm)
41 mm
Frame Type
Tubular space frame
Suspension - Front
41mm USD telescopic fork
Suspension - Rear
Cast aluminium dual swing arm, central spring strut, spring pre-load adjustable
Rake
25.1°
Steering Head Angle
64.9°
Trail
114 mm / 4.48 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
131 mm / 5.5 in
Alternator
Three-phase alternator with 308 W
Lighting system
LED headlight, tail light and LED indicators
Brakes - Front
Single 300mm disc, 4-piston fixed caliper, radially bolted
Brakes - Rear
Single 240mm disc, single-piston floating caliper
ABS
BMW Motorrad ABS
Brake Fluid Type
DOT4
Rims - Front
3.0 x 17
Rims - Rear
4.0 x 17
Tyre Pressure - Front
32 PSI (2.2 Bar or 220 kPa)
Tyre Pressure - Rear
33 PSI (2.3 Bar or 230 kPa)
Tyres - Front
110/70 R17
Tyres - Rear
150/60 R17
Wheels
5-Spoke, cast aluminium
