Full Specifications
General
Year
2018
Make Model

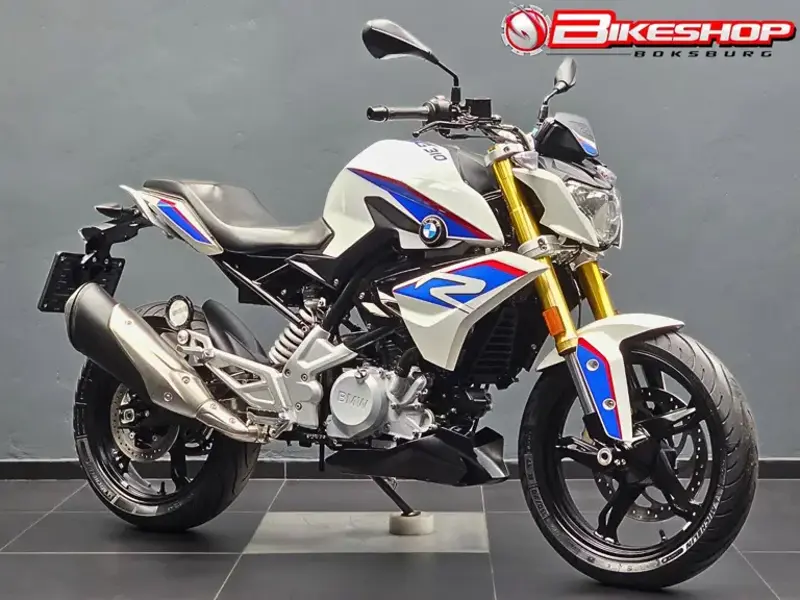

BMW G 310R
Dimensions
Seat Height
785 mm / 30.9 in
Wheelbase
1374 mm / 54.1 in
Length
1988 mm / 78.3 in
Width
896 mm / 35.3 in
Weights & Capacities
Fuel Capacity
11 Litres / 2.9 US gal
Max Load
345 kg / 761 lbs
Wet Weight
158.5 kg / 349 lbs
Performance
Top Speed
145 km/h / 90 mph
Max Power
25 kW / 34 hp @ 9500 rpm
Max Torque
28 Nm / 2.86 kgf-m / 20.7 ft-lb @ 7500 rpm
Engine
Displacement
313 cc / 19.1 cu in
Engine Detail
Single cylinder, DOHC, 4 valves
Bore x Stroke
80 x 62 mm
Compression Ratio
10.6:1
Cooling System
Liquid Cooled
Exhaust valve diameter
∅27.2 mm
Fuel Consumption
3.33 L/100 km / 30 km/l / 70.6 US mpg
Fuel Induction
BMS-E2
Starter
Electric
Valve Diameter (Intake)
∅33.5 mm
EV Specifics
Battery Capacity
12V, 8 Ah
Drivetrain
Clutch
Wet, multi-plate
Final Drive
Chain, O-ring
Gear Ratios
1st 3.000 / 2 nd 2.063 / 3rd 1.588 / 4th 10286 / 5th 1.095 / 6th 0.955:1
Primary Drive Ratios
3.083:1
Transmission / Drive
6-Speed, constant-mesh
Chassis
Frame Type
Tubular steel frame in grid structure with bolt-on rear frame
Suspension - Front
41mm Telescopic fork
Suspension - Rear
Aluminium swinging arm in conjunction with a directly mounted spring strut
Steering Head Angle
64.9º
Trail
102.3 mm / 4.02 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
131 mm / 5.5 in
Electrical Systems
Alternator
330W
Wheels & Brakes
Brakes - Front
Single 300mm disc, ABS
Brakes - Rear
Single 240mm disc, ABS
Tyres - Front
110/70 R17
Tyres - Rear
150/60 R17
Wheels
5-Spoke, light alloy die-cast
Wheels - Front
3.0 x 17
Wheels - Rear
4.0 x 17
