Key Specifications
Fuel Capacity
24.00 litres
Advertisement

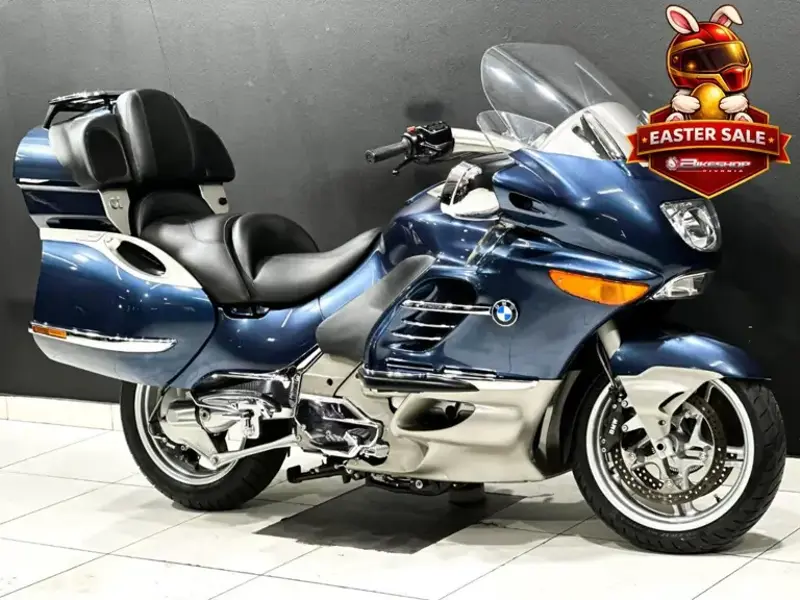

Full 2006 BMW K 1200LT Specifications
Width (mm)
1,080 mm
Width (in.)
42.5 inches
Wheelbase (mm)
1,637 mm
Wheelbase (in.)
64.4 inches
Seat Height (mm)
770 mm
Seat Height (in.)
30.3 inches
Length (mm)
2,502 mm
Length (in.)
98.5 inches
Height (mm)
1,395 mm
Height (in.)
54.9 inches
Wet Weight (lbs.)
853.2 pounds
Wet Weight (kg)
387.0 kg
Fuel Capacity (l)
24.00 litres
Dry Weight (kg)
353.5
Dry Weight (lbs.)
779.3 pounds
Fuel Capacity (gal.)
6.34 gallons
Stroke
4
Bore x Stroke (in,)
2.8 x 3.0 inches
Bore x Stroke (mm)
70.5 x 75.0 mm
Displacement (cc)
1171.00 cc
Displacement (ci)
71.45 cubic inches
Engine Type
In-line four
Fuel System
Injection. Electronic intake pipe injection / BMW engine management, Motronic MA 2.4 with overrun fuel cut-off
Compression Ratio
10.8:1
Valve System
4
Clutch
Single-disc dry clutch, hydraulically operated
Final Drive
Shaft drive (cardan)
Gearbox
5-speed
Trail (in.)
4.6 inches
Trail (mm)
117 mm
Wheel Travel - Front (in.)
1.4 inches
Wheel Travel - Front (in.)
1.4 inches
Wheel Travel - Front (mm)
35 mm
Wheel Travel - Front (mm)
35 mm
Wheel Travel - Rear (in.)
5.3 inches
Wheel Travel - Rear (mm)
135 mm
Frame Type
Bridge-type frame, die-cast aluminium, engine decoupled from vibrations through bearings
Suspension - Front
BMW Motorrad Telelever
Suspension - Rear
Die-cast aluminium single-sided swing arm with BMW Motorrad Paralever
Rake
27.0°
Brakes - Rear Diameter (mm)
285 mm
Brakes - Rear Diameter (in.)
11.2 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
160/70-ZR17
