Full Specifications
General
Year
2010
Colours
Black, gray, white, red
Make Model

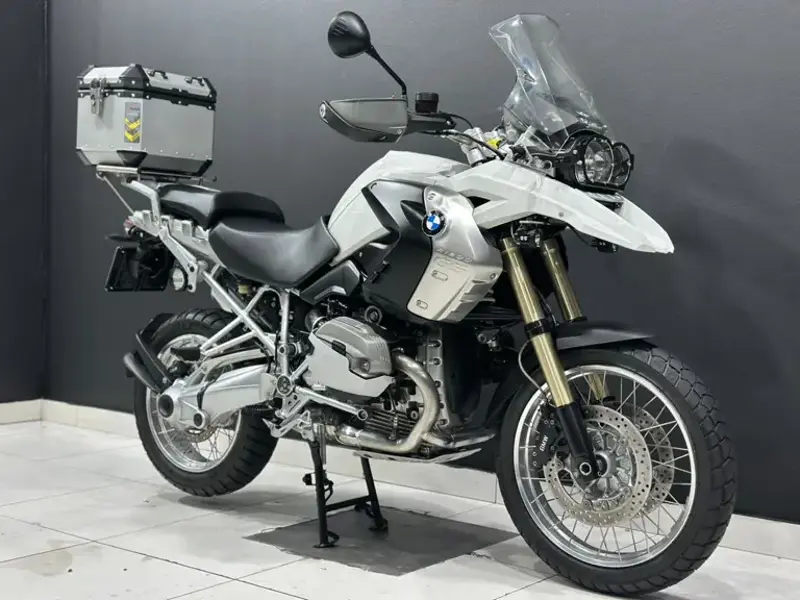

BMW R 1200GS
Dimensions
Width (mm)
935 mm
Width (in.)
36.8 inches
Wheelbase (mm)
1,507 mm
Wheelbase (in.)
59.3 inches
Seat Height (mm)
850 mm
Seat Height (in.)
33.5 inches
Length (mm)
2,210 mm
Length (in.)
87.0 inches
Height (mm)
1,450 mm
Height (in.)
57.1 inches
Seat Height
850 mm - 870 mm / 33.4 in - 34.2 in
Wheelbase
1506 mm / 59.3 in
Height
1450 mm / 57.1 in
Length
2210 mm / 87.0 in
Width
915 mm / 36.0 in
Weights & Capacities
Wet Weight (lbs.)
504.9 pounds
Wet Weight (kg)
229.0 kg
Fuel Capacity (l)
20.00 litres
Fuel Capacity (gal.)
5.28 gallons
Dry Weight (kg)
203.0 kg
Dry Weight (lbs.)
447.5 pounds
Dry Weight
199 kg / 439 lbs
Fuel Capacity
20 Litres / 5.2 US gal
Wet Weight
229 kg / 505 lbs
Performance
Top Speed
208.4 km/h / 129.5 mph
Acceleration (0-100 km/h)
3.6 sec
Acceleration (100-140 km/h)
4.1 sec
Acceleration (140-180 km/h)
4.8 sec
Acceleration (60-100 km/h)
4.0 sec
Acceleration (60-140 km/h)
8.1 sec
Max Power
77 kW / 105 hp @ 7500 rpm
Max Torque
115 Nm / 11.7 kgf-m / 84.8 ft/lb @ 5750 rpm
Power-to-Weight Ratio
0.5086 HP/kg
Standing Start 0-140 km/h
5.9 sec
Standing Start 0-200 km/h
16.0 sec
Standing Start ¼ Mile
12.3 sec
Engine
Engine Type
Two cylinder boxer, two-stroke
Fuel Control
SOHC
Fuel Reserve (gal.)
1.06 gallons
Fuel Reserve (l)
4.00 litres
Displacement (ci)
71.39 cubic inches
Displacement (cc)
1170.00 cc
Bore x Stroke (in,)
4.0 x 2.9 inches
Bore x Stroke (mm)
101.0 x 73.0 mm
CO2
99.8 CO
Displacement
1170 cc / 71.4 cub in.
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition
Bore x Stroke
101 x 73 mm
Compression Ratio
12.0:1
Cooling System
Air/oil cooled
Exhaust
Closed-loop 3-way catalytic converter, emission standard EU-3
Fuel Consumption
5.8 L/100 km / 17.2 km/l / 40.5 US mpg
Fuel Induction
Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut off, dual ignition
Fuel Reserve
4L / 1.1 US gal
Ignition
BMS-K
Starter
Electric
Valve System
4
EV Specifics
Battery Capacity
Battery 12 V / 14 Ah, maintenance-free
Drivetrain
Clutch
Single plate dry clutch, ∅180 mm, hydraulically operated
Final Drive
Shaft
Gear Ratios
1st 2.37 / 2nd 1.64 / 3rd 1.29 / 4th 1.06 / 5th 0.93 / 6th 0.84:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Chassis
Trail (in.)
4.0 inches
Trail (mm)
101 mm
Wheel Travel - Front (in.)
7.5 inches
Wheel Travel - Front (in.)
7.5 inches
Wheel Travel - Front (mm)
190 mm
Wheel Travel - Front (mm)
190 mm
Wheel Travel - Rear (in.)
7.9 inches
Wheel Travel - Rear (mm)
200 mm
Frame Type
Tubular space frame, engine load-bearing
Suspension - Front
Telelever, stanchion diameter 41mm, central spring strut, spring preload 9 times mechanically adjustable.
Suspension - Rear
Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever, WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable.
Rake
25.7°
Trail
101 mm / 3.97 in
Wheel Travel - Front
190 mm / 7.5 in
Wheel Travel - Rear
200 mm / 7.9 in
Electrical Systems
Alternator
Three-phase alternator 720W
Wheels & Brakes
Brakes - Front Diameter (mm)
305 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Rear Diameter (mm)
265 mm
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front
2 x 305 mm discs, 4 piston caliper
Brakes - Rear
Single 265 mm disc, 2 piston caliper
Tyres - Front
110/80 ZR19
Tyres - Rear
150/70 ZR17
