Key Specifications
Engine
Two cylinder boxer, four-stroke
Torque
125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 6500 Revolutions">RPM
Fuel Capacity
20.00 litres
Advertisement

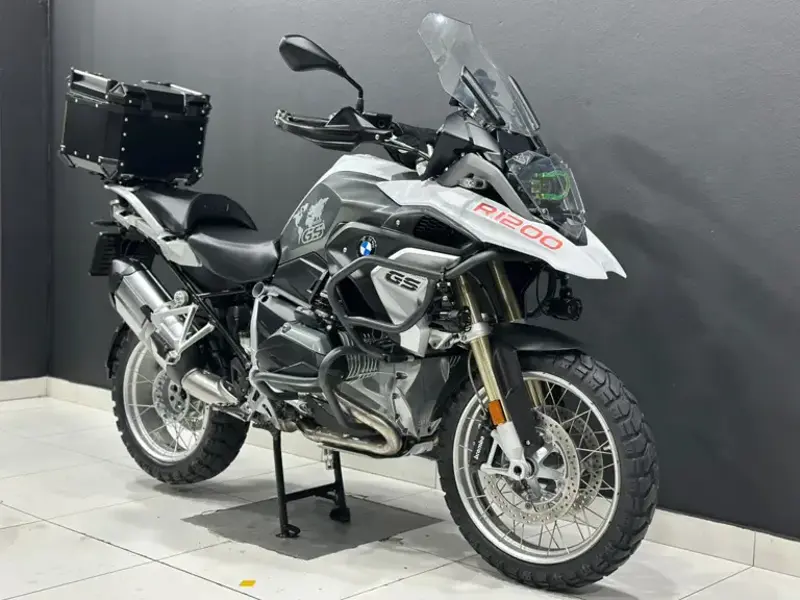

Full 2018 BMW R 1200GS Specifications
Comments
Windscreen.
Colours
Light White/Black Storm Metallic
Width (mm)
953 mm
Width (in.)
37.5 inches
Wheelbase (mm)
1,507 mm
Wheelbase (in.)
59.3 inches
Seat Height (mm)
850 mm
Seat Height (in.)
33.5 inches
Length (mm)
2,207 mm
Length (in.)
86.9 inches
Height (mm)
1,450 mm
Height (in.)
57.1 inches
Wet Weight (lbs.)
537.9 pounds
Wet Weight (kg)
244.0 kg
Fuel Capacity (l)
20.00 litres
Fuel Capacity (gal.)
5.28 gallons
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Two cylinder boxer, four-stroke
Displacement (ci)
71.39 cubic inches
Displacement (cc)
1170.00 cc
CO2
115.1 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
101.0 x 73.0 mm
Bore x Stroke (in,)
4.0 x 2.9 inches
Engine Detail
Balancer shaft
Fuel System
Injection. Electronic intake pipe injection
Compression Ratio
12.5:1
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-4
Engine Lubrication
Dry sump
Fuel Consumption
4.96 litres/100 km (20.2 km/l or 47.42 mpg)
Starter
Electric
Valve System
4
Clutch
Oil lubricated clutch, hydraulically operated
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Primary Drive
Constant mesh
Trail (in.)
3.9 inches
Trail (mm)
100 mm
Wheel Travel - Front (in.)
7.5 inches
Wheel Travel - Front (mm)
190 mm
Wheel Travel - Rear (in.)
7.9 inches
Wheel Travel - Rear (mm)
200 mm
Frame Type
Two-section frame, front- and bolted on rear frame, load-bearing engine
Suspension - Front
BMW Motorrad Telelever
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Rake
25.5°
Brakes - Front Diameter (mm)
305 mm
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Rear Diameter (mm)
276 mm
Brakes - Front Diameter (in.)
12.0 inches
Brakes - Front
Double disc. ABS. Floating discs. Four-piston calipers.
Brakes - Rear
Single disc. ABS. Floating disc. Two-piston calipers.
Rims
Aluminium-Gussr?der
Tyres - Front
120/70-R19
Tyres - Rear
170/60-R17
