Full Specifications
General
Year
2019
Make Model

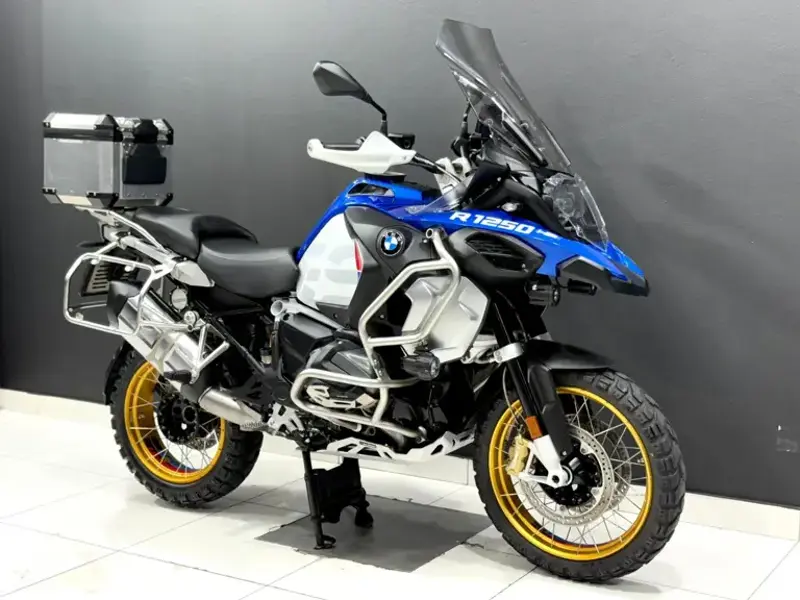

BMW R 1250GS Adventure
Dimensions
Seat Height
890 mm to 910 mm / 35 in to 35.8 in 820 mm to 910 mm / 32 in to 35.8 in - possible
Wheelbase
1504 mm / 59.2 in
Length
952 mm / 37.5 in (including mirrors)
Width
952 mm / 37.5 in (including mirrors)
Weights & Capacities
Fuel Capacity
30 Litres / 7.9 US gal
Wet Weight
268 kg / 591 lbs
Performance
Max Power
136 hp / 100 kW @ 7750 rpm
Max Torque
143 Nm / 105.4 lb-ft @ 6250 rpm
Engine
Displacement
1254 cc / 76.5 cu-in
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, with two overhead, spur gear driven camshafts , a counterbalance shaft and variable intake camshaft control system BMW ShiftCam, 4 valves per cylinder, Intake 40mm, outlet 34 mm
Bore x Stroke
102.5 x 76 mm
Compression Ratio
12.5:1
Cooling System
Liquid / Air cooled
Emissions
Closed-loop three-way catalytic converter, exhaust standard , Euro 4
Engine Management
BMS-O
Fuel Induction
Electronic intake pipe injection, 52mm Ø throttle valve
Fuel Type
Premium unleaded, 95 (RON)
Starter
Electric 900W
EV Specifics
Battery Capacity
12V/12Ah
Drivetrain
Clutch
Wet clutch with anti-hopping function, hydraulically activated
Final Drive
Shaft
Gear Ratios
1st 2.438 2nd 1.714 3rd 1.296 4th 1.059 5th 0.943 6th 0.848
Primary Drive Ratios
1.650
Secondary Drive Ratio
2.910
Transmission / Drive
Constant mesh 6-speed gearbox with helical gearing system
Chassis
Frame Type
Two-section frame concept consisting of main frame with bolt-on rear frame, load-bearing engine
Suspension - Front
BMW Motorrad 37mm Telelever, central spring strut
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever, WAD spring strut, continuously adjustable spring preload by means of hand wheel, rebound-stage damping adjustable by hand wheel (Option: Dynamic ESA)
Steering Angle
65.1°
Trail
95.4 mm / 3.8 in
Wheel Travel - Front
210 mm / in
Wheel Travel - Rear
220 mm / 8.7 in
Wheels & Brakes
Brakes - Front
2x 305mm floating discs, 4-piston radial brake calipers
Brakes - Rear
Single 276mm disc, 2-piston floating caliper
ABS
BMW Motorrad Integral ABS as standard (part integral), disengageable (option: ABS Pro)
Tyres - Front
120/70 R19
Tyres - Rear
170/60 R17
Wheels
Cross spoke
Wheels - Front
3.00 x 19
Wheels - Rear
4.50 x 17
