Key Specifications
Engine
In-line four, four-stroke
Power
121 kW / 165 hp @ 11000 rpm
Torque
112 Nm / 84 lb-ft @ 9250 rpm
Fuel Capacity
17.5 Litres / 4.6 US gal.
Advertisement

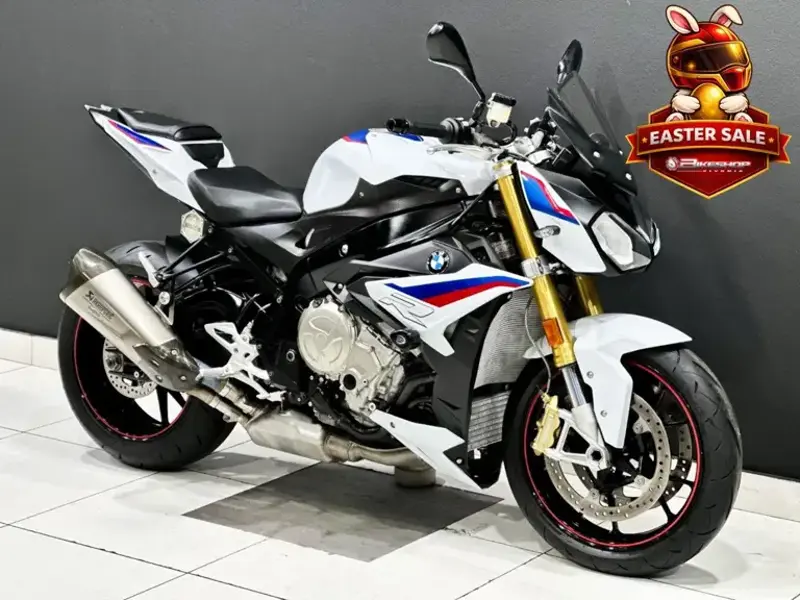

Full 2018 BMW S 1000R Specifications
Comments
Switchable ABS. Riding Modes Rain and Road.
Year
2018
Colours
Motorsport, Catalano Grey, Racing Red/Black Storm
Make Model
BMW S 1000R
Seat Height
814 mm / 32.0 in.
Wheelbase
1440 mm / 56.7 in
Height
1228 mm / 48.3 in
Length
2057 mm / 81.0 in.
Width
845 mm / 33.3 in (incl. mirrors)
Dry Weight
178 kg / 392.4 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal.
Wet Weight
205 kg / 452 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
CO2
155.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic injection
Bore x Stroke
80 x 49.7 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Emissions
Two regulated three-way catalytic converters, EU-3
Exhaust
HP Slip on Titanium Silencer
Fuel Consumption
6.70 litres/100 km (14.9 km/l or 35.11 mpg)
Fuel Induction
Electronic fuel injection, digital motor electronics BMS-KP
Fuel Reserve
4.00 litres / 1.06 gallons
Intake / Outlet Valve Diameter
33.5 mm / 27.2 mm
Lubrication
Wet sump
Starter
Electric
Valve System
4
Clutch
Multiple disc antihopping clutch in oil bath, mechanically operated
Final Drive
Chain 17/45
Gear Ratios
Ist 2.647 2nd 2.091 3rd 1.727 4th 1.5 5th 1.36 6th 1.261
Gearbox
6-speed
Primary Drive
Chain 17/45
Primary Drive Ratios
1.652
Transmission / Drive
6 Speed
Frame Type
Construction type aluminium bridge frame, enqine self-supporting
Suspension - Front
Upside-down fork, stanchion diameter 46 mm, adjustable for bump and rebound SA DDC: electronically adjustable damping
Suspension - Rear
Aluminium double-strut swingarm with central spring strut, adjustable rebound, SA DDC: electronically adjustable damping
Rake
24.8°
Steering Head Angle
65.4°
Trail
813 mm / 32.0 in
Wheel Travel - Front
120 mm / 4.7"
Wheel Travel - Rear
120 mm / 4.7"
Electrical System
Alternator W 350 Battery V/Ah 12/9, maintenance-free (with DWA 12/10) Headlight W low beam 1 x H 7/55 W high beam 1 x H 7/55 W
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2 x 320mm Discs, 4 piston calipers
Brakes - Rear
Single 220mm disc, 1 piston caliper
ABS
Optional equipment BMW Motorrad Race ABS (partially integral, disengageable)
Rims
Cast aluminium
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
Wheel Caster
98.5 mm / 3.88 in
Wheels - Front
3.50 x 17
Wheels - Rear
6.00 x 17
