Key Specifications
Engine
In-line four, four-stroke
Power
143.9 kW / 193 hp @ 13000 rpm
Torque
112 Nm / 11.4 kgf-m / 82.6 lb-ft @ 9750 rpm
Top Speed
193.1 km/h / 120.0 mph
Weight
204.6 kg / 451.0 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal
Advertisement

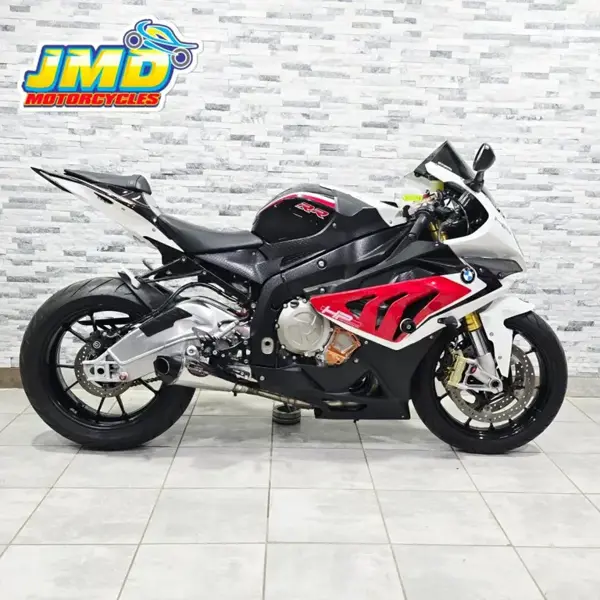

Full 2013 BMW S 1000RR Specifications
Year
2013
Colours
Red/white, grey, black, white/blue/red
Make Model
BMW S 1000RR
Seat Height
820 mm / 33.3 in
Wheelbase
1422.7 mm / 56.0 in
Height
1138 mm / 44.8 in. (excl. mirrors)
Length
2056 mm / 80.9 in.
Width
826 mm / 32.5 in (incl. mirrors)
Dry Weight
178 kg / 398 lbs
Fuel Capacity
17.5 Litres / 4.6 US gal
Wet Weight
204.6 kg / 451.0 lbs
Fuel Control
DOHC
Engine Type
In-line four, four-stroke
CO2
951.2 CO
Displacement
999 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic injection, digital engine electronics with integrated knock control (BMS-KP)
Bore x Stroke
80 x 49.7 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled.
Emissions
Two regulated three-way catalytic converters, EU-3
Exhaust
Stainless steel. 4-in-2-in-1. Closed-loop 3-way catalytic converter, emission standard EU-3.
Fuel Consumption
41.00 litres/100 km (2.4 km/l or 5.74 mpg)
Fuel Induction
Electronic fuel injection, digital motor electronics BMS-KP
Fuel Reserve
3.79 litres / 1.00 gallons
Intake / Outlet Valve Diameter
33.5 mm / 27.2 mm
Lubrication
Wet sump
Starter
Electric
Throttle valve diameter
48 mm
Valve System
4
Battery Capacity
14 V / 10 Ah, maintenance-free
Clutch
Multiple disc antihopping clutch in oil bath, mechanically operated
Final Drive
Chain 17/45
Gear Ratios
1st 2.6471 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261:1
Gearbox
6-speed
Transmission / Drive
6 Speed
Frame Type
Bridge-type aluminium frame, load-bearing engine
Suspension - Front
43mm Telescopic fork
Suspension - Rear
Cast aluminium double-strut swingarm with eccentric adjustment for rear axle, central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable.
Rake
24.0°
Steering Head Angle
66.1°
Trail
98.5 mm
Wheel Travel - Front
125 mm / 4.9 in
Wheel Travel - Rear
125 mm / 4.9 in
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 220mm disc 1 piston calipers
ABS
BMW Motorrad Race ABS, disengageable, 4 modes to select: Rain, Sport, Race, Slick (optional equipment)
Rims
Aluminum cast wheels
Rims - Front
3.50 x 17
Rims - Rear
6.00 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Cast alumiium
