Key Specifications
Engine
In-line four, four-stroke
Torque
112.6 Nm (11.5 kgf-m or 83.0 ft.lbs) @ 11000 Revolutions">RPM
Fuel Capacity
16.50 litres
Advertisement

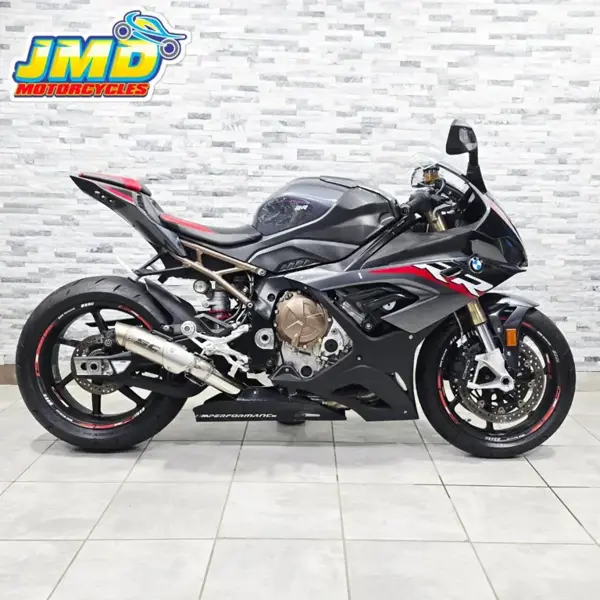

Full 2022 BMW S 1000RR Specifications
Comments
4 Ride Modes (Rain/Sport/Dynamic/Race). Dynamic Traction Control. Electronic Immobilizer.
Colours
Light White/Lupin Blue Metallic/Racing Red, Black Storm Metallic, Mineral Gray Metallic
Width (mm)
848 mm
Width (in.)
33.4 inches
Wheelbase (mm)
1441 mm
Wheelbase (in.)
56.7 inches
Seat Height (mm)
823 mm
Seat Height (in.)
32.4 inches
Length (mm)
2073 mm
Length (in.)
81.6 inches
Height (mm)
1151 mm
Height (in.)
45.3 inches
Wet Weight (lbs.)
434.0 pounds
Wet Weight (kg)
196.9 kg
Oil Capacity (Quarts)
3.7 US quarts
Oil Capacity (l)
3.50 litres
Fuel Capacity (l)
16.50 litres
Fuel Capacity (gal.)
4.36 US gallons
Dry Weight (lbs.)
458.6 pounds
Dry Weight (kg)
208
Fuel Reserve (l)
4.00 litres
Fuel Reserve (gal.)
1.06 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
In-line four, four-stroke
Displacement (ci)
60.96 cubic inches
Displacement (cc)
999.0 cc
Bore x Stroke (mm)
80.0 x 49.7 mm
Bore x Stroke (in,)
3.1 x 2.0 inches
Engine Detail
Titanium valves
Fuel System
Injection. Electronic fuel injection with ride-by-wire throttle system, variable intake, and knock sensor
Compression Ratio
13.3:1
Emissions
Euro 4. Closed-loop 3-way catalytic converter.
Engine Lubrication
Wet sump
Idle Speed
1200 +/- 50 RPM
Spark Plug
NGK LMAR9D-J
Starter
Electric
Valve System
4
Chain Size
525
Clutch
Multiplate clutch in oil bath, anti-hopping clutch, mechanically controlled
Final Drive
Chain (final drive)
Gearbox
6-speed
Number of Chain Links
118
Sprocket
17/45 (front/rear)
Fork Tube Size (in.)
1.8 inches
Fork Tube Size (mm)
46 mm
Trail (in.)
3.7 inches
Trail (mm)
94 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
4.6 inches
Wheel Travel - Rear (mm)
117 mm
Frame Type
Aluminium composite bridge frame, partially self-supporting engine
Suspension - Front
Upside-down telescopic fork 46 mm, compression and rebound stage adjustable.
Suspension - Rear
WSBK Aluminium swing arm, full floater pro, compression and rebound damping adjustable, adjustable preload
Rake
23.5°
Instrumentation
Three-phase 450 W Generator. 12 V / 8 Ah, maintenance-free battery.
Lighting system
LED Headlight
Brakes - Front
Double disc. ABS. Floating discs. Four-piston calipers.
Brakes - Rear
Single disc. ABS. Floating disc. Single-piston caliper.
Brake Fluid Type
DOT 4
Tyre Pressure - Front
36 PSI (2.5 Bar or 250 kPa)
Tyre Pressure - Rear
42 PSI (2.9 Bar or 290 kPa)
Tyres - Front
120/70-ZR17
