Full Specifications
General
Year
2013
Make Model

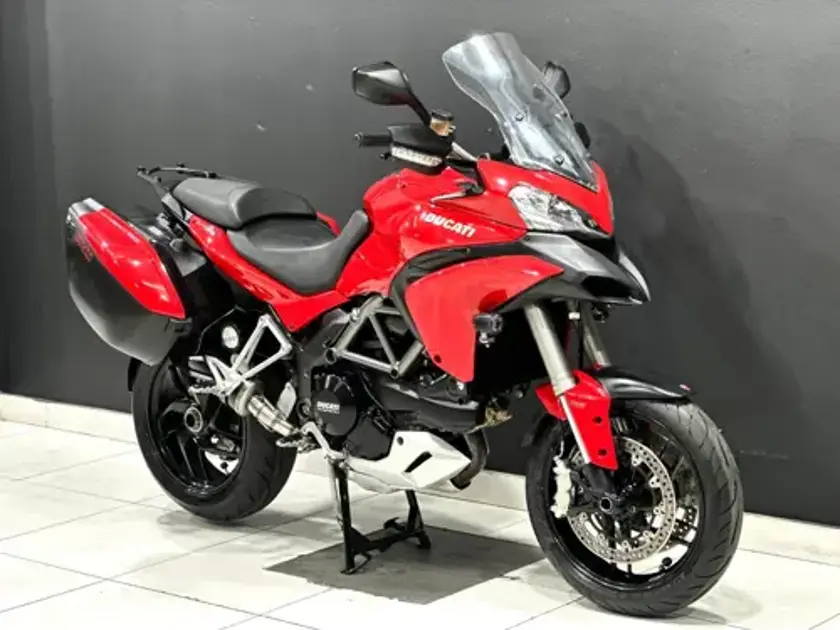

Ducati Multistrada 1200
Dimensions
Seat Height
850 mm / 33.4 in
Wheelbase
1530mm / 60.2 in
Height
1310 mm / 51.5 in
Length
2200 mm / 86.6 in
Width
945 mm / 37.2 in
Weights & Capacities
Dry Weight
188 kg / 417 lbs
Fuel Capacity
20 Litres / 5.3 US gal / 4.4 Imp gal
Wet Weight
217 kg / 478 lbs
Performance
Max Power
110.3 kW / 150 hp @ 9250 rpm
Max Torque
124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm
Engine
Displacement
1198.4 cc / 73.1 cu-in
Engine Detail
Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder
Bore x Stroke
106 x 67.9 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Exhaust
Stainless steel muffler with catalytic converter and 2 lambda probes, alluminium tail pipes
Fuel Induction
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies
Ignition
Marelli electronic
Lubrication
Wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Starter
Electric
Drivetrain
Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Final Drive
Chain #530, front sprocket 15; rear sprocket 40
Gear Ratios
1.84:1
Gear Ratios
1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25
Transmission / Drive
6 Speed
Chassis
Frame Type
Tubular steel trellis frame
Suspension - Front
Marzocchi 50 mm fully adjustable USD forks
Suspension - Rear
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm
Rake
25°
Trail
110 mm / 4.33 in
Wheel Travel - Front
170 mm / 6.7 in
Wheel Travel - Rear
170 mm / 6.7 in
Wheels & Brakes
Brakes - Front
2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment
Brakes - Rear
Single 245 mm disc, 2-piston caliper
Tyres - Front
120/70 - ZR17
Tyres - Rear
190/55 - ZR17
Wheels - Front
10-spoke light alloy, 3.50 x 17
Wheels - Rear
10-spoke light alloy, 6.00 x 17
