Key Specifications
Engine
Testastretta, L-Twin cylinder, 4 valves per cylinder, Desmodromic
Power
83.1 kW / 113 hp @ 9000 rpm
Torque
96.2 Nm / 9.8 kgf-m / 71 lb-ft @ 7750 rpm
Fuel Capacity
20 L / 5.3 US gal / 4.4 Imp gal
Advertisement

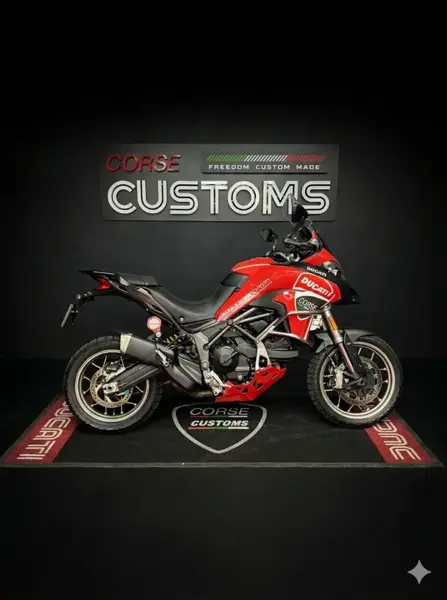

Full 2018 Ducati Multistrada 950 Specifications
Year
2018
Make Model
Ducati Multistrada 950
Wheelbase
1594 mm / 62.8 in
Dry Weight
204 kg / 450lbs
Fuel Capacity
20 L / 5.3 US gal / 4.4 Imp gal
Wet Weight
227 kg / 500 lbs
Displacement
937 cc / 57.2 cu in
Engine Detail
Testastretta, L-Twin cylinder, 4 valves per cylinder, Desmodromic
Bore x Stroke
94 x 67.5 mm
Compression Ratio
12.6:1
Cooling System
Liquid cooled
Exhaust
Stainless steel muffler with catalytic converter and 2 lambda probes, single stainless steel muffler, Euro 4 compliant
Fuel Induction
Fuel injection Bosch electronic fuel injection system, cylindrical throttle bodies with Ride-by-Wire, diameter 53 mm
Ignition
Electronic
Starter
Electric
Clutch
Wet multiplate clutch mechanically operated, self-servo action on drive, slipper action on overrun
Final Drive
Chain
Final Drive Ratio
15:43
Gear Ratios
1st 37:15 / 2nd 30:17 / 3rd 28:20 / 4th 26:22 / 5th 24:23 / 6th 23:24
Primary Drive Ratios
1.84:1
Transmission / Drive
6-Speed
Frame Type
Tubular steel trellis frame
Suspension - Front
KYB 48 mm fully adjustable upside-down forks
Suspension - Rear
Fully adjustable Sachs monoshock unit, temote spring preload adjustment, aluminium doublesided swingarm
Rake
25.2o
Trail
105.7 mm / 4.16 in
Wheel Travel - Front
170 mm / 6.7 in
Wheel Travel - Rear
170 mm / 6.7 in
Instrumentation
LCD, Ducati electronics Riding Modes, Power Modes, Ducati Safety Pack (ABS + DTC)
Brakes - Front
2 x 320 mm Semi-floating discs, radially mounted monoblocco Brembo callipers, 4-piston, 2-pad, ABS standard
Brakes - Rear
Single 265 mm Disc, 2-piston floating calliper, ABS standard
Tyres - Front
120/70 - R19, Pirelli Scorpion Trail II
Tyres - Rear
170/60 - R17, Pirelli Scorpion Trail II
Wheels - Front
Cast alloy, 3.00 x 19"
Wheels - Rear
Cast alloy, 4.50 x 17"
