Key Specifications
Engine
Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Power
103 hp / 77 kW @ 5250 rpm
Torque
169 Nm / 124.6 lb-ft @ 3500 rpm
Weight
405 kg / 892.8 lbs
Fuel Capacity
22.7 Litres / US 6.0 gal
Advertisement

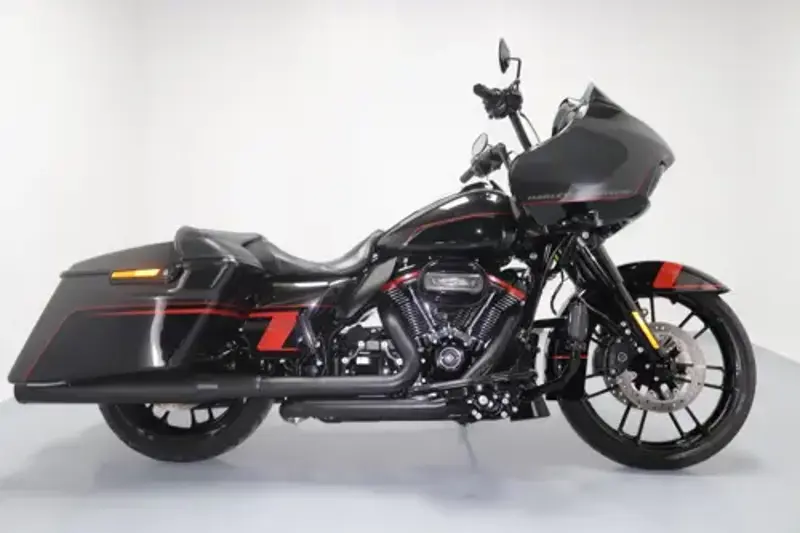

Full 2022 Harley-Davidson CVO Road Glide Specifications
Year
2022
Make Model
Harley Davidson CVO Road Glide
Seat Height
680 mm / 26.7 in
Wheelbase
1625 mm / 64.0 in
Ground Clearance
125 mm / 4.9 in
Length
2460 mm / 96.8 in
Dry Weight
390 kg / 859.8 lbs
Fuel Capacity
22.7 Litres / US 6.0 gal
Wet Weight
405 kg / 892.8 lbs
Displacement
1923 cc / 117 cu-in
Engine Detail
Four stroke, V-Twin, Milwaukee-Eight 117, Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, 4 valves per cylinder
Bore x Stroke
103.5 X 114.3 mm
Compression Ratio
10.2:1
Cooling System
Air cooled
Exhaust
Dual, with crossover
Fuel Induction
Electronic sequential port fuel injection (ESPFI)
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Lubrication
Pressurized, dry-sump with oil cooler
Starter
Electric
Final Drive
Belt
Gear Ratios
1st 9.593 2nd 6.65 3rd 4.938 4th 4 5th 3.407 6th 2.875
Primary Drive
Chain, 34/46 ratio
Transmission / Drive
6 Speed
Frame Type
Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Suspension - Front
49mm Dual bending valve
Suspension - Rear
Premium low hand-adjustable
Rake
26°
Swingarm
Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Trail
173 mm / 6.8 in
Wheel Travel - Front
91 mm / 3.6 in
Wheel Travel - Rear
54 mm / 2.1 in
Brakes - Front
2 x 300mm floating rotors, 4-piston fixed caliper
Brakes - Rear
Single 300mm fixed rotor, 4-piston fixed caliper
ABS
Standard
Tyres - Front
BW 130/60B21 M/C63H
Tyres - Rear
BW 180/55B18 M/C80H
Wheels
Denim black with contrast gloss black combo Gloss black with contrast smoked satin combo
