Key Specifications
Torque
129.00 Nm (13.2 kgf-m or 95.2 ft.lbs) @ 8750
Fuel Capacity
18.50 litres
Advertisement

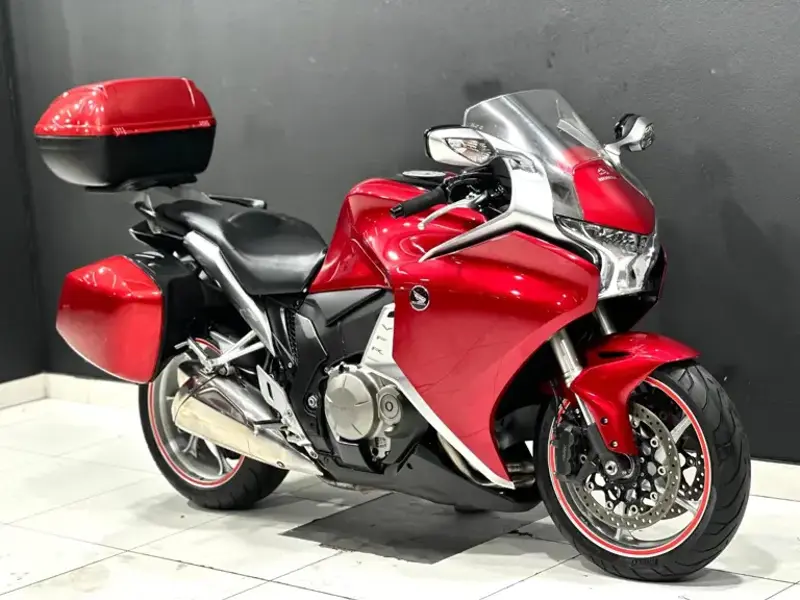

Full 2010 Honda VFR 1200F Specifications
Colours
Red, white, silver
Width (mm)
755 mm
Width (in.)
29.7 inches
Wheelbase (mm)
1,545 mm
Wheelbase (in.)
60.8 inches
Seat Height (mm)
815 mm
Seat Height (in.)
32.1 inches
Length (mm)
2,250 mm
Length (in.)
88.6 inches
Height (mm)
1,220 mm
Height (in.)
48.0 inches
Ground Clearance (mm)
125 mm
Ground Clearance (in.)
4.9 inches
Fuel Capacity (l)
18.50 litres
Fuel Capacity (gal.)
4.89 gallons
Dry Weight (lbs.)
588.6 pounds
Dry Weight (kg)
267
Fuel Control
SOHC
Engine Type
V4, four-stroke
Displacement (ci)
75.48 cubic inches
Displacement (cc)
1237.00 cc
Bore x Stroke (mm)
81.0 x 60.0 mm
Bore x Stroke (in,)
3.2 x 2.4 inches
Fuel System
Injection. PGM-FI electronic fuel injection
Compression Ratio
12.0:1
Ignition
Computer-controlled digital transistorised
Starter
Electric
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Suspension - Front
43mm cartridge-type telescopic fork with stepless preload adjustment, 120mm axle travel
Suspension - Rear
Pro-Link with gas-charged damper, 25-step remote-adjusted preload and stepless rebound damping adjustment. 130mm axle travel
Brakes - Rear Diameter (mm)
276 mm
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
Double disc
Brakes - Rear
Single disc
Tyres - Front
120/70-ZR17
Tyres - Rear
190/55-ZR17
