Key Specifications
Torque
126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500
Fuel Capacity
21.50 litres
Advertisement

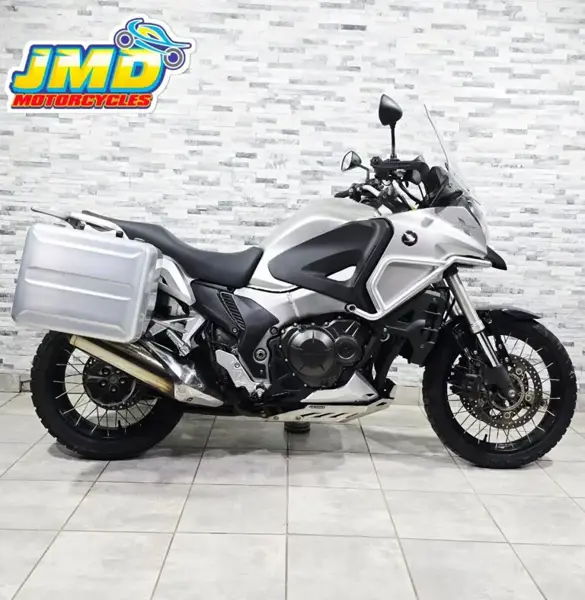

Full 2014 Honda VFR 1200X Crosstourer Specifications
Comments
Model ID: VFR1200F with Dual Clutch Automatic Transmission
Colours
Matt Titanium Blade Metallic, Camo
Warranty
One year. Unlimited milage. Transferable.
Width (mm)
915 mm
Width (in.)
36.0 inches
Wheelbase (mm)
1,595 mm
Wheelbase (in.)
62.8 inches
Seat Height (mm)
850 mm
Seat Height (in.)
33.5 inches
Length (mm)
2,285 mm
Length (in.)
90.0 inches
Height (mm)
1,335 mm
Height (in.)
52.6 inches
Ground Clearance (mm)
180 mm
Ground Clearance (in.)
7.1 inches
Wet Weight (lbs.)
606.3 pounds
Wet Weight (kg)
275.0 kg
Fuel Capacity (l)
21.50 litres
Fuel Capacity (gal.)
5.68 gallons
Fuel Control
SOHC
Bore x Stroke (in,)
3.2 x 2.4 inches
Bore x Stroke (mm)
81.0 x 60.0 mm
Engine Type
V4, four-stroke
Displacement (ci)
75.48 cubic inches
CO2
119.9 CO
Displacement (cc)
1237.00 cc
Engine Detail
76 degree cyclinder angle
Fuel System
Injection. PGM-FI
Compression Ratio
12.0:1
Emissions
Meets current California Air Resources Board (CARB) and EPA standards.
Fuel Consumption
5.17 litres/100 km (19.3 km/l or 45.50 mpg)
Ignition
Computer-controlled digital transistorised with electronic advance
Starter
Electric
Valve System
4
Clutch
Wet multiplate (* Wet multiplate, hydraulic 2-clutch)
Final Drive
Chain
Gearbox
6-speed
Trail (in.)
4.2 inches
Trail (mm)
107 mm
Wheel Travel - Front (in.)
4.3 inches
Wheel Travel - Front (mm)
109 mm
Wheel Travel - Rear (in.)
5.1 inches
Wheel Travel - Rear (mm)
130 mm
Frame Type
Diamond; aluminium twin-spar
Suspension - Front
43mm inverted telescopic forks with hydraulic damping, preload and rebound damping adjustment
Suspension - Rear
Pro-Link with gas-charged damper, preload and stepless rebound damping adjustment
Rake
28.0°
Brakes - Rear Diameter (mm)
276 mm
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Front Diameter (mm)
310 mm
Brakes - Front Diameter (in.)
12.2 inches
Brakes - Front
Double disc. Combined ABS
Brakes - Rear
Single disc. Combined ABS
Tyres - Front
120/70-ZR17
Tyres - Front
110/80-R19
Tyres - Rear
150/70-R17
Tyres - Rear
190/55-ZR17
