Key Specifications
Engine
Four stroke, single cylinder, DOHC with cam levers, 4 valves
Power
44 hp / 32 kW @ 9000 rpm
Torque
37 Nm / 27.3 lb-ft @ 7000 rpm
Weight
152 kg / 335.6 lbs
Fuel Capacity
9.5 Litres / 2.5 US gal
Advertisement

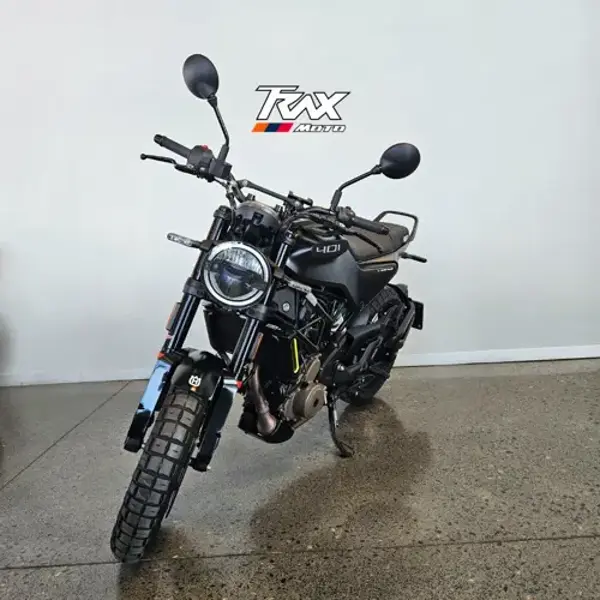

Full 2022 Husqvarna Svartpilen 401 Specifications
Year
2022
Make Model
Husqvarna Svartpilen 401
Seat Height
835 mm / 32.8 in
Wheelbase
1357 ± 15.5 mm / 53.4 in
Ground Clearance
145 mm / 5.6 in
Dry Weight
152 kg / 335.6 lbs
Fuel Capacity
9.5 Litres / 2.5 US gal
Displacement
373.2 cc / 22.8 cu-in
Engine Detail
Four stroke, single cylinder, DOHC with cam levers, 4 valves
Bore x Stroke
89 x 60 mm
Compression Ratio
12.6:1
Cooling System
Liquid cooled
Emissions
EURO 5
Engine Management
Bosch EMS
Exhaust
Stainless steel / Aluminium silencer with regulated catalytic converter
Fuel Induction
Bosch EFI (throttle body 46 mm)
Lubrication
Wet sump with 2 oil pumps
Starter
Electric
Clutch
Multi disc slipper clutch
Final Drive
Chain, X-Ring 5/8 x 1/4″
Final Drive Ratio
15:45
Primary Drive Ratios
30:80
Transmission / Drive
6 Speed
Frame Type
Steel trellis frame, powder coated
Suspension - Front
43mm WP APEX upside-down forks, with compression rebound adjustability
Suspension - Rear
WP APEX monoshock with preload adjustability
Clamp Offset - Triple
32 mm / 1.8 in
Rake
25°
Steering Head Angle
65°
Trail
95 mm / 3.7 in
Wheel Travel - Front
142 mm / 5.6 in
Wheel Travel - Rear
142 mm / 5.6 in
Brakes - Front
Single 320mm disc, ByBre 4 piston caliper
Brakes - Rear
Single 230mm disc, ByBre, single piston, floating caliper
ABS
Two channel Bosch 10.1MB
Tyres - Front
110/70-R17 Pirelli Scorpion Rally STR
Tyres - Rear
150/60-R17 Pirelli Scorpion Rally STR
Wheels
Spoked wheels with aluminium rims
Wheels - Front
3.00 x 17
Wheels - Rear
4.00 x 17
