Full Specifications
General
Year
2021-22
Make Model

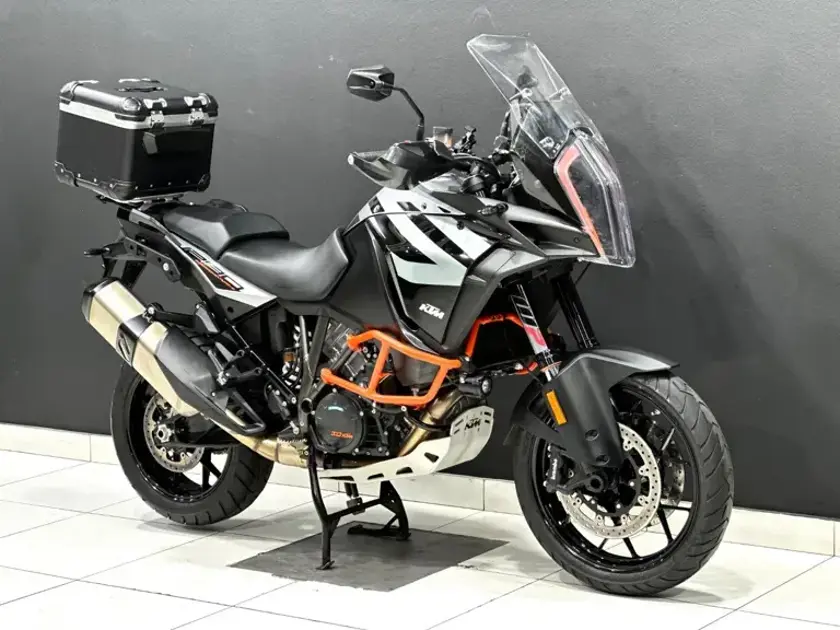

KTM 1290 Super Adventure S
Dimensions
Seat Height
849 mm / 33.4 in - adjustable 869 mm / 34.2 in
Wheelbase
1557±15 mm / 61.2 in
Ground Clearance
223 mm / 8.7 in
Weights & Capacities
Dry Weight
220 kg / 485 lbs
Fuel Capacity
23 Litres / 6 US gal
Performance
Max Power
118 kW / 160 hp @ 9000 rpm
Max Torque
138 Nm / 101.7 lb-ft @ 6500 rpm
Engine
Displacement
1301 cc / 79.3 cu-in
Engine Detail
Four stroke, 75° V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
108 x 71 mm
Compression Ratio
13.1:1
Cooling System
Liquid cooling system, continuous circulation of cooling liquid with water pump
Emissions
EURO5
Fuel Induction
2x Keihin EFI, 52mm throttle bodies
Ignition
System contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 3 oil pumps
Starter
Eletric
Drivetrain
Clutch
PASC anti-hopping clutch, hydraulically operated
Final Drive
Chain 525 X-Ring
Transmission / Drive
6-speed
Chassis
Frame Type
Chromium-Molybdenum-Steel trellis frame, powder coated, aluminium, powder coated sub-frame
Suspension - Front
48 mm WP APEX Semi-Active Technology USD forks - Pro package optional
Suspension - Rear
WP SAT (semi-active technology) shock absorber, electronically regulated preload
Steering Head Angle
65.3°
Wheel Travel - Front
200 mm / 7.9 in
Wheel Travel - Rear
200 mm / 7.9 in
Electronics
Electronics Package
Keihin EMS with RBW and ACC (adaptive cruise control), double ignition, MTC (lean-angle sensitive, 4 modes, disengageable)
Electrical Systems
Instrumentation
7″ TFT
Wheels & Brakes
Brakes - Front
2 x 320 mm disc Brembo four-piston, radially mounted caliper
Brakes - Rear
Single 267 mm disc, Brembo two-piston, fixed caliper
ABS
Bosch 10.3ME Combined-ABS - incl. Cornering-ABS and offroad mode, disenengageable
Rims - Front
3.50 x 19
Rims - Rear
5.00 x 17
Tyres - Front
120/70-ZR19
Tyres - Rear
170/60-ZR17
Wheels
Cast aluminium
