Full Specifications
General
Year
2020
Make Model

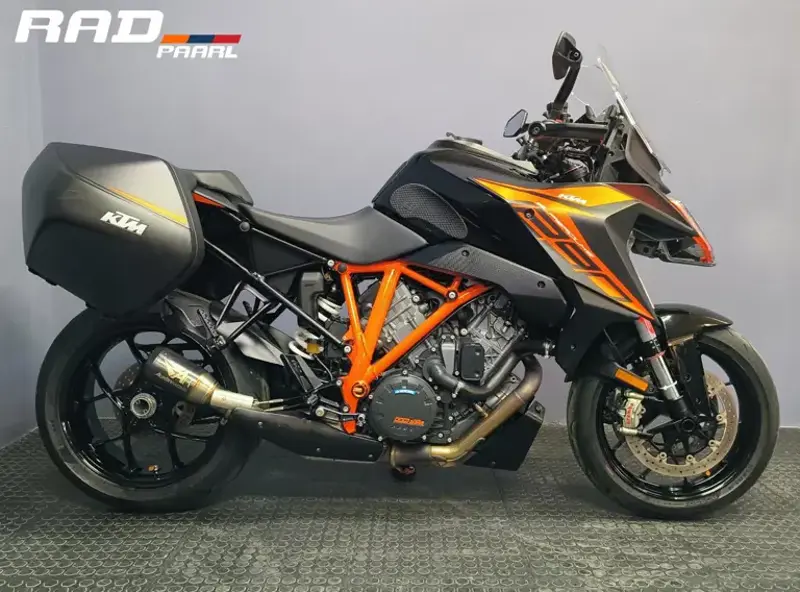

KTM 1290 Super Duke GT
Dimensions
Seat Height
835 mm / 32.9 in
Wheelbase
1482 mm ±15 mm / 58.34 in ± 0.59 in
Ground Clearance
140 mm / 5.5 in
Weights & Capacities
Fuel Capacity
23 Litres / 6.1 US gal
Wet Weight
225.4 kg / 497 lbs
Performance
Max Power
173 hp / 129 kW @
Max Torque
141 Nm / 104 lb-ft @
Engine
Displacement
1301 cc / 79.4 cu in
Engine Detail
75° V twin, 4 stroke, DOHC, 4 valve per cylinder, titanium inlet valves
Bore x Stroke
108 x 71 mm
Cooling System
Liquid cooling
Fuel Induction
Keihin EFI, throttle body 56 mm
Ignition
Keihin EMS with RBW, dual ignition
Lubrication System
Pressure lubrication, 3 Eaton pumps
Starter
Electric
Drivetrain
Clutch
PASC slipper, hydraulically operated
Final Drive
Chain
Transmission / Drive
6-Speed with up/down quickshifter
Chassis
Frame Type
Chromemoly steel trellis
Suspension - Front
WP Semi-Active, ø 48 mm
Suspension - Rear
Linkage-assisted WP semi-active shock
Rake
24.9°
Trail
107 mm / 4.2 in
Wheel Travel - Front
125 mm / 4.9 in
Wheel Travel - Rear
129.5 mm / 5.1 in
Wheels & Brakes
Brakes - Front
2x 320 mm floating discs, Brembo calipers, ABS
Brakes - Rear
Single 240 mm disc, Brembo caliper, ABS
Tyres - Front
120/70 x 17, Pirelli Angel GT
Tyres - Rear
190/55 x 17, Pirelli Angel GT
Wheels - Front
Aluminium, 3.50 x 17 in
Wheels - Rear
Aluminium, 6.00 x 17 in
