Full Specifications
General
Year
2020 - 21
Make Model

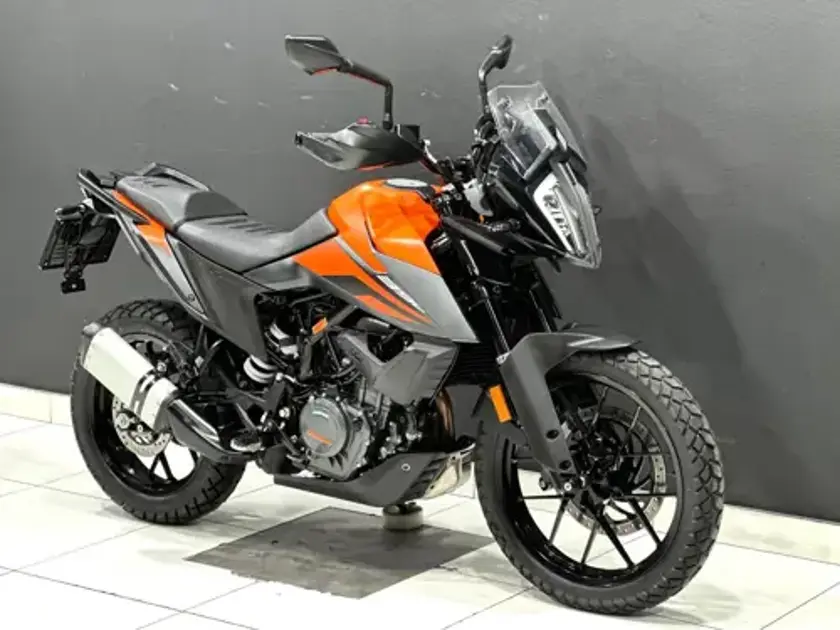

KTM 390 Adventure
Dimensions
Seat Height
855 mm / 33.6 in
Wheelbase
1430 ± 15.5 mm / 56.3 in ± 0.6 in
Ground Clearance
200 mm / 7.8 in
Weights & Capacities
Dry Weight
158 kg / 348.3 lbs
Fuel Capacity
14 Litres / 3.8 US gal / 2.9 Imp gal
Performance
Max Power
43.5 hp / 32 kW @ 9500 rpm
Max Torque
3.6 kg-m / 35.3 Nm @7000rpm
Engine
Displacement
373 cc / 22.7 cu-in
Engine Detail
Four stroke, single cylinder. DOHC with finger followers, 4 valves
Bore x Stroke
89 x 60 mm
Compression Ratio
12.6:1
Cooling System
Liquid Cooled
Exhaust
Stainless steel primary and aluminium secondary silencer
Fuel Induction
Bosch EFI throttle body 38 mm
Ignition
Bosch EMS with RBW
Lubrication
Wet sump
Starter
Electric
EV Specifics
Battery Capacity
12V, 8 Ah
Drivetrain
Clutch
PASC slipper clutch, mechanically operated
Final Drive
Chain X-Ring 520
Final Drive Ratio
15:45
Primary Drive Ratios
30:80
Transmission / Drive
6 Speed
Chassis
Frame Type
Steel trellis frame, powder coated, Subframe Steel trellis frame, powder coated
Suspension - Front
43 mm WP APEX inverted fork
Suspension - Rear
WP APEX shock absorber, adjustbable rebound and spring preload
Handlebar
Aluminium, tapered, Ø 26 / 22 mm
Steering Head Angle
63,5°
Trail
98 mm / 3.8 in
Wheel Travel - Front
170 mm / 6.7 in
Wheel Travel - Rear
177 mm / 7.0 in
Electronics
Traction control
MTC
Wheels & Brakes
Brakes - Front
Single 320 mm disc, 4 piston, radially mounted caliper
Brakes - Rear
Single 230 mm disc 2 piston caliper
ABS
Bosch 9.1MP Two Channel (disengageable)
Tyres - Front
100/90 ZR 19
Tyres - Rear
130/80 ZR 17
Wheels - Front
Cast aluminium wheels 2.50 x 19
Wheels - Rear
Cast aluminium wheels 3.50 x 17
