Key Specifications
Engine
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Power
43.5 hp / 32 kW @ 9500 rpm
Torque
37 Nm / 27.2 lb-ft@ 7000rpm
Weight
158 kg / 348.3 lbs
Fuel Capacity
14.5 Litres / 3.8 US gal
Advertisement

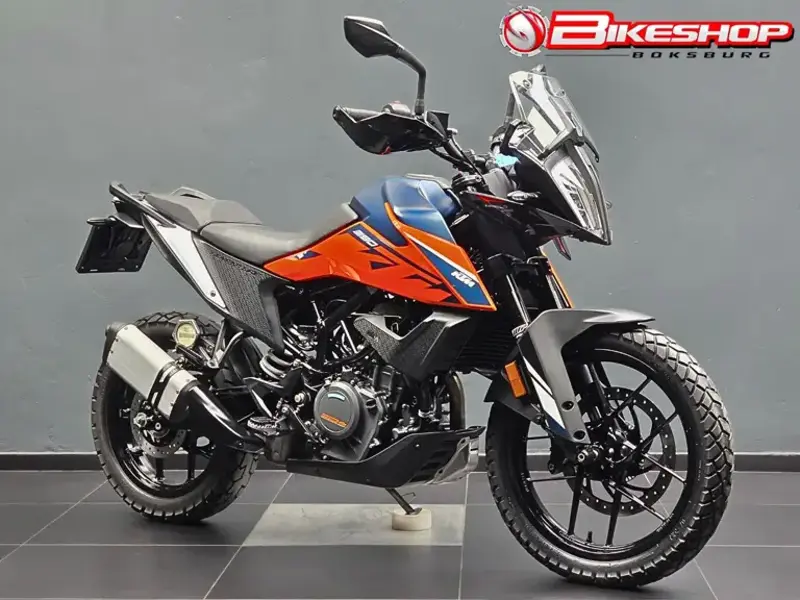

Full 2022 KTM 390 Adventure Specifications
Year
2022
Make Model
KTM 390 Adventure
Seat Height
855 mm / 33.6 in
Wheelbase
1430 ± 15.5 mm / 56.3 in ± 0.6 in
Ground Clearance
200 mm / 7.8 in
Dry Weight
158 kg / 348.3 lbs
Fuel Capacity
14.5 Litres / 3.8 US gal
Displacement
373 cc / 22.7 cu-in
Engine Detail
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Bore x Stroke
89 x 60 mm
Compression Ratio
12.6:1
Cooling System
Liquid Cooled
Emissions
Euro 5
Engine Management
Bosch EMS with RBW
Exhaust
Stainless steel primary and aluminium secondary silencer
Fuel Induction
Bosch EFI throttle body 38 mm
Lubrication
Wet sump
Starter
Electric
Battery Capacity
12V, 8 Ah
Clutch
PASC antihopping clutch, mechanically operated
Final Drive
Chain X-Ring 520
Final Drive Ratio
15:45
Primary Drive Ratios
30:80
Transmission / Drive
6 Speed
Frame Type
Steel trellis frame, powder coated, Subframe Steel trellis frame, powder coated
Suspension - Front
43 mm WP APEX inverted fork
Suspension - Rear
WP APEX shock absorber, adjustbable rebound and spring preload
Handlebar
Aluminium, tapered, Ø 26 / 22 mm
Steering Head Angle
63.5°
Trail
98 mm / 3.8 in
Wheel Travel - Front
170 mm / 6.7 in
Wheel Travel - Rear
177 mm / 7.0 in
Brakes - Front
Single 320 mm disc, 4 piston, radially mounted caliper
Brakes - Rear
Single 230 mm disc 2 piston caliper
ABS
Bosch 9.1MP Two Channel-ABS (incl. Cornering-ABS and offroad mode)
Tyres - Front
100/90 ZR 19
Tyres - Rear
130/80 ZR 17
Wheels - Front
Cast aluminium wheels 2.50 x 19
Wheels - Rear
Cast aluminium wheels 3.50 x 17
