Key Specifications
Engine
Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,
Power
94.2 kW / 126 hp @ 14400 rpm - Lim. 15000 rpm.
Torque
71 Nm / 7.24 kgm @ 10600 rpm.
Top Speed
258.5 km/h / 160.3 mph
Weight
173 kg / 381.4 lbs
Fuel Capacity
16 Litres / 4.2 US gal
Advertisement

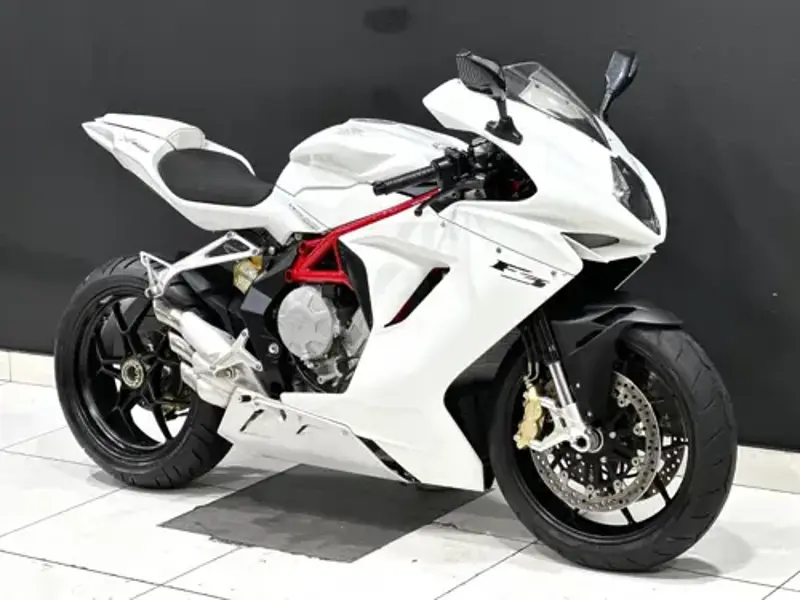

Full 2013 MV Agusta F3 675 Specifications
Year
2013
Make Model
MV Agusta F3 675
Seat Height
812 mm / 31.9 in
Wheelbase
1380 mm / 54.3 in
Ground Clearance
125 mm / 4.9 in
Height
805 mm / 31.6 in
Length
2060 mm/ 81.0 in
Width
725 mm / 28.5 in Saddle
Dry Weight
173 kg / 381.4 lbs
Fuel Capacity
16 Litres / 4.2 US gal
Displacement
675 cc / 41.1 cu-in
Engine Detail
Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,
Bore x Stroke
79 x 45.9 mm
Compression Ratio
13.0:1
Cooling System
Liquid Cooled
Fuel Consumption
17.9 km/lit
Fuel Induction
Integrated ignition - injection system with six injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention
Ignition
Digital CDI
Starter
Electric
Battery Capacity
12 V - 8.6 Ah
Clutch
Wet, multiple discs, cable operated
Final Drive
Chain
Final Drive Ratio
16/43
Gear Ratios
1st : 1/14.493 2nd: 1/10.821 3rd: 1/9.053 4th: 1/8.040 5th: 1/7.274 6th: 1/6.712
Transmission / Drive
6 Speed
Frame Type
ALS Steel tubular trellis, Rear swing arm pivot plates: material Aluminium alloy
Suspension - Front
43mm "UPSIDE - telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment,
Suspension - Rear
Progressive, single shock absorber with rebound and compression (High speed/ Low speed) damping and spring preload adjustment
Rake
23.6°
Trail
99 mm / 3.89 in.
Wheel Travel - Front
125 mm / 4.9 in
Wheel Travel - Rear
123 mm / 4.84 in
Alternator
350 W @ 5000 r.p.m.
Brakes - Front
2x 320mm Double floating discs, 4 pistons calipers
Brakes - Rear
Single 220mm disc, single piston calipers
Tyres - Front
120/70-ZR17
Tyres - Rear
190/55-ZR17
Wheels - Front
Material/size Aluminium alloy 3.50 " x 17 "
Wheels - Rear
Material/size Aluminium alloy 5.50"x 17"
