Full Specifications
General
Year
2015
Make Model

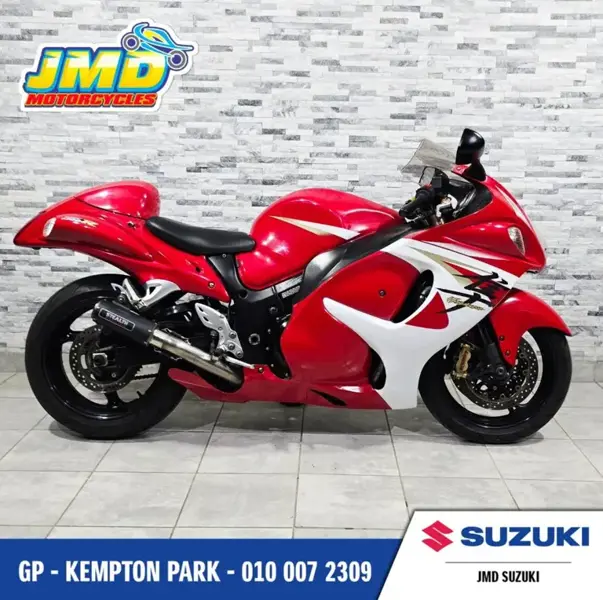

Suzuki GSX 1300R Hayabusa
Dimensions
Seat Height
805 mm / 31.7 in
Wheelbase
1480 mm / 58.3in
Ground Clearance
120 mm / 4.7 in
Height
1165 mm / 45.9 in
Length
2190 mm / 86.2 in
Width
735 mm / 28.9 in
Weights & Capacities
Dry Weight
220 kg / 485 lbs
Fuel Capacity
21 Litres / 5.5 US gal / 4.6 Imp gal
Wet Weight
266 kg / 586 lbs
Performance
Top Speed
296.9 km/h / 184.49 mph
Acceleration (100-140 km/h)
3.2 sec
Acceleration (140-180 km/h)
3.4 sec
Acceleration (60-140 km/h)
3.9 sec
Max Power
146 kW / 195.7 hp @ 9800 rpm
Max Torque
154 Nm / 15.81 kg-m / 113.6 lb-ft @ 7200 rpm
Standing Start 0-100 km
3.0 sec
Standing Start 0-140 km
4.4 sec
Standing Start 0-200 km
7.3 sec
Standing Start ¼ Mile
10.2 sec
Engine
Displacement
1340 cc / 81.8 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
81 x 65 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooled
Fuel Consumption
6.1 L/100 km / 16.3 km/l / 38.3 US mpg / 46.0 Imp mpg
Fuel Induction
Suzuki Fuel Injection fuel injection
Ignition
Electronic
Lubrication
Wet sump
Starter
Electric
Drivetrain
Clutch
Wet multi-plate, manual, hydraulic, 6 spring coil, Plates: 10 Drive, 9 Driven
Final Drive
Chain
Final Drive Ratio
2.388 (43/18)
Gear Ratios
1st 1.596 / 2nd 2.615 / 3rd 1.937 / 4th 1.526 / 5th 1.136 / 5th 1.136
Primary Drive Ratios
1.596 (83/52)
Transmission / Drive
6 Speed
Chassis
Frame Type
Design (Material): Twin-spar (aluminum alloy)
Suspension - Front
Inverted telescopic coil springs, spring preload, rebound and compression damping fully adjustable.
Suspension - Rear
Link type, oil damped, coil springs, spring preload, rebound and compression damping fully adjustable.
Rake
24.2°
Trail
98 mm / 3.8 in
Wheels & Brakes
Brakes - Front
2 x 310 mm Discs, 4 piston calipers
Brakes - Rear
Single 260 mm disc, 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/50 ZR17
Wheels - Front
17 M/C x MT3.50, cast aluminum alloy
Wheels - Rear
17 M/C x MT6.00, cast aluminum alloy
