Full Specifications
General
Year
2009
Make Model

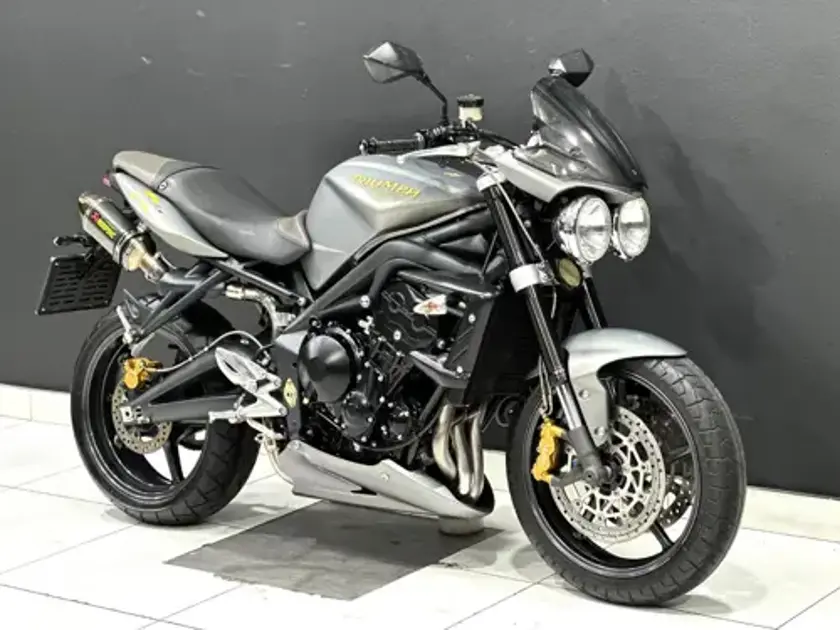

Triumph Street Triple 675
Dimensions
Seat Height
800 mm / 31.5 in
Wheelbase
1410 mm / 55.5in
Height
(without mirrors) 1060 mm / 41.7 in
Length
2055 mm / 80.8 in
Width
(handlebars) 740 mm / 29.1 in
Weights & Capacities
Dry Weight
167 kg / 368 lbs
Fuel Capacity
17.4 Litres / 4.6 US gal / 3.8 Imp gal
Oil Capacity
3.4 Litres / 3.6 US qt / 3.0 Imp qt
Wet Weight
182 kg / 400 lbs
Performance
Top Speed
223 km/h / 139 mph
Max Power
78 kW / 105 hp @ 11850rpm
Max Torque
68 Nm / 6.9 kgf-m / 50ft.lbs @ 9750rpm
Standing Start ¼ Mile
11.6 sec
Engine
Displacement
675 cc / 41.19 cu-in
Engine Detail
Four stroke, in-line 3-cylinder, DOHC, 12 valve
Bore x Stroke
74 x 52.3 mm
Compression Ratio
12.65:1
Cooling System
Liquid-cooled
Exhaust
Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Fuel Consumption
5.1 L/100 km / 19.8 km/l / 46.6 US mpg / 55.9 Imp mpg
Fuel Induction
Multipoint sequential electronic fuel injection with forced air induction
Ignition
Digital - inductive type
Starter
Electric
Drivetrain
Clutch
Wet multiplate
Final Drive
O ring chain
Transmission / Drive
6 Speed
Chassis
Frame Type
Aluminium beam twin spar
Suspension - Front
41mm Kayaba telescopic upside down forks
Suspension - Rear
Kayaba monoshock, adjustable preload
Rake
24.3°
Trail
95.3 mm / 3.75 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
126 mm / 5.0 in
Wheels & Brakes
Brakes - Front
2 x 308 mm Discs, Nissin 2 piston sliding calipers
Brakes - Rear
Single 220 mm disc, 1 piston caliper
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheels - Front
Cast aluminium alloy 5-spoke, 17 x 3.5in
Wheels - Rear
Cast aluminium alloy 5-spoke, 17 x 5.5in
