Key Specifications
Engine
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Power
95.2 PS / 93.9 hp / 70 kW @ 8750 rpm
Torque
87 Nm / 64.1 lb-ft @ 7250 rpm
Weight
201 kg / 443.1 lbs
Fuel Capacity
20 Litres / 5.28 US gal
Advertisement

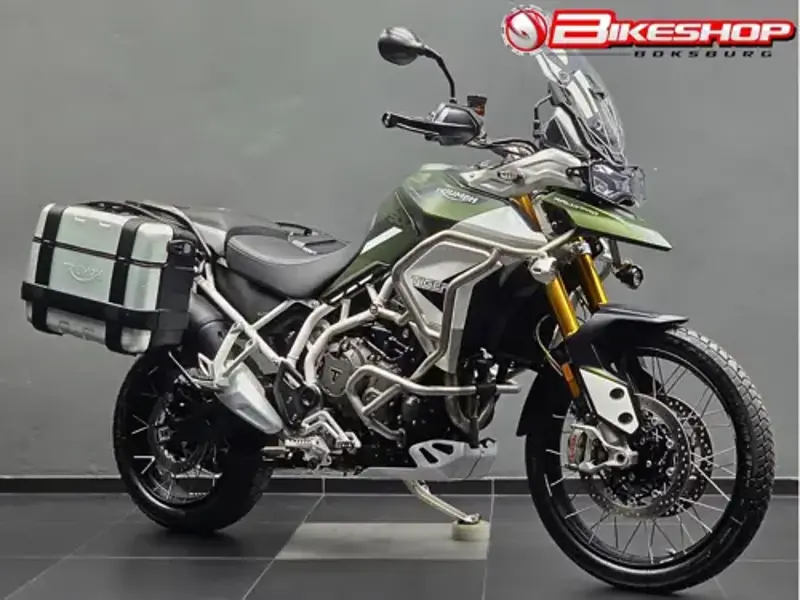

Full 2020 Triumph Tiger 900 Rally / Rally Pro Specifications
Year
2020
Make Model
Triumph Tiger 900 Rally / Rally Pro
Seat Height
850 - 870 mm / 33.4 - 34.2 in
Wheelbase
1556 mm / 61.2 in
Height
1452 - 1502 mm / 57.1 - 59.1 in
Width
935 mm / 36.8 in
Dry Weight
201 kg / 443.1 lbs
Fuel Capacity
20 Litres / 5.28 US gal
Displacement
888 cc / 54.1 cu-in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
78 x 61.9 mm
Compression Ratio
11.27:1
Cooling System
Liquid cooled
Emissions
Euro 5
Exhaust
Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
O-ring chain
Transmission / Drive
6 Speed
Frame Type
Tubular steel frame, bolt on sub frame
Suspension - Front
Showa 45mm upside down forks, manual preload, rebound damping and compression damping adjustment
Suspension - Rear
Showa rear suspension unit, manual preload and rebound damping adjustment
Rake
24.4°
Swingarm
Twin-sided, cast aluminium alloy
Trail
145.8 mm / 5.7 in
Wheel Travel - Front
240 mm / 9.4 in
Wheel Travel - Rear
230 mm / 9.0 in
Brakes - Front
2x 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder
Brakes - Rear
Single 255mm disc, Brembo single piston sliding caliper
ABS
Optimised Cornering ABS
Tyres - Front
90/90-21
Tyres - Rear
150/70R17
Wheels
Spoked Tubeless
Wheels - Front
21 x 2.15 in
Wheels - Rear
17 x 4.25 in
