Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
94.9 kW / 129 hp @ 14500 rpm
Torque
65.7 Nm / 6.6 kgf-m / 47.7 ft-lb @ 11500 rpm
Weight
189 kg / 415.8 lbs.
Fuel Capacity
17.5 Liters / 3.7 gal
Advertisement

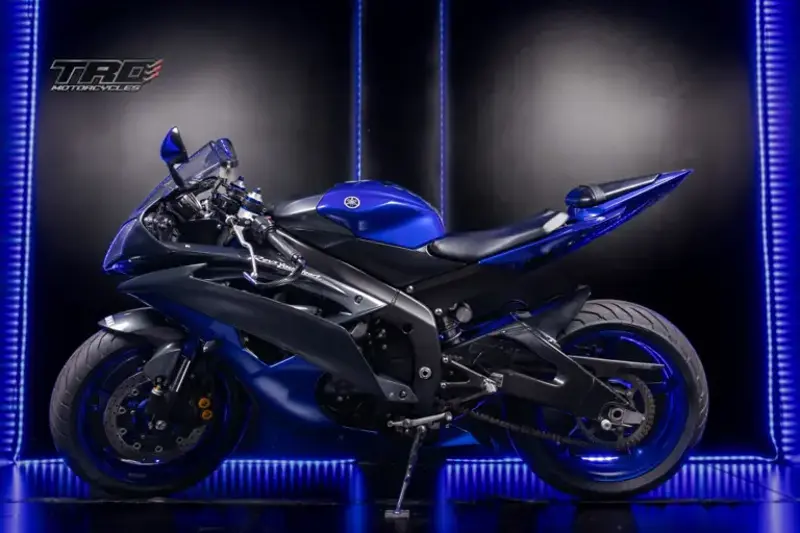

Full 2014 Yamaha YZF 600 R6 Specifications
Year
2014
Make Model
Yamaha YZF 600 R6
Seat Height
850 mm / 33.5 in
Wheelbase
1375 mm / 54.1 in
Ground Clearance
130 mm / 5.1 in
Height
1095mm / 43.1in
Length
2040 mm / 80.3in
Width
705 mm / 27.8'in
Fuel Capacity
17.5 Liters / 3.7 gal
Wet Weight
189 kg / 415.8 lbs.
Displacement
599 cc / 36.5 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
67 x 42.5 mm
Compression Ratio
13.1;1
Cooling System
Liquid cooled
Fuel Induction
41 mm Mikuni throttle body F.I.
Ignition
TCI (Transistor Controlled Ignition)
Lubrication
Wet sump
Starter
Electric
Clutch
Multi-plate slipper clutch
Final Drive
O-ring chain
Gear Ratios
1st 31/12 (2.583) / 2nd 32/16 (2.000) / 3rd 30/18 (1.667) / 4th 26/18 (1.444) / 5th 27/21 (1.286) / 6th 23/20 (1.150)
Transmission / Drive
6 Speed
Frame Type
Deltabox aluminium frame with revised rigidity balance
Suspension - Front
Fully adjustable 41 mm inverted cartridge fork,
Suspension - Rear
Fully adjustable link Monocross; 4-way adjustable,
Rake
24°
Trail
97 mm / 3.8 in
Wheel Travel - Front
115 mm / 4.5 in
Wheel Travel - Rear
119.4 mm / 4.7 in
Brakes - Front
2x 310mm discs 4 piston calipers
Brakes - Rear
Single 220mm disc 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
