Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Power
94.9 kW / 129 hp @ 14500 rpm
Torque
65.8 Nm / 48.5 lb-ft @ 11000 rpm
Fuel Capacity
17 Litres / 4.5 US gal
Advertisement

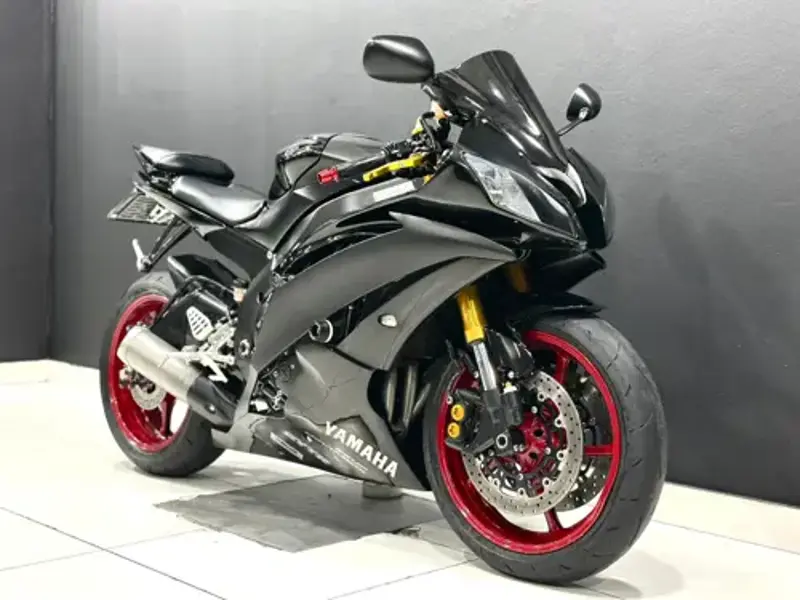

Full 2008 Yamaha YZF 600 R6 Specifications
Year
2008
Make Model
Yamaha YZF 600 R6
Seat Height
850 mm / 33.5 in
Wheelbase
1380 mm / 54.3 in
Ground Clearance
130 mm / 5.1 in
Height
1090 mm / 43.1in
Length
2040 mm / 80.3in
Width
700 mm / 27.6 in
Dry Weight
166 kg / 366 lbs
Fuel Capacity
17 Litres / 4.5 US gal
Wet Weight
188 kg / 413.6 lb
Displacement
599 cc / 36.5 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
67 x 42.5 mm
Compression Ratio
13.1:1
Cooling System
Liquid cooled
Fuel Consumption
19.3 km/lit
Fuel Induction
Fuel Injection with YCC-T and YCC-I
Ignition
TCI (Transistor Controlled Ignition)
Lubrication
Wet sump
Starter
Electric
Clutch
Multi-plate slipper clutch
Final Drive
#525 O-ring chain
Gear Ratios
1st 31/12 (2.583) / 2nd 32/16 (2.000) / 3rd 30/18 (1.667) / 4th 26/18 (1.444) / 5th 27/21 (1.286) / 6th 23/20 (1.150)
Transmission / Drive
6 Speed
Frame Type
Deltabox aluminium frame with revised rigidity balance
Suspension - Front
41 mm inverted telescopic fork w/adjustable preload, separate high & low-speed compression damping, rebound damping
Suspension - Rear
Fully adjustable link Monocross, 4-way adjustable
Rake
24°
Trail
97mm / 3.8 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
120 mm / 4.7 in
Brakes - Front
2x 310mm discs 4 piston calipers
Brakes - Rear
Single 220mm disc 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
