Full Specifications
General
Year
2015
Make Model

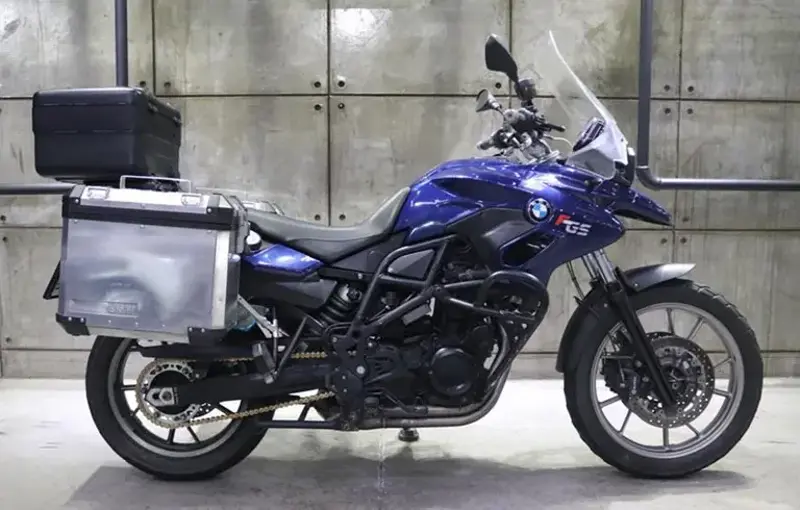

BMW F 700GS
Dimensions
Seat Height
820 mm - 790 mm / 32.3 in. - 31.1 in.
Wheelbase
1562 mm / 61.5 in
Height
1240 mm / 48.8 in (excl. mirrors)
Length
2280 mm / 89.8 in
Width
890 mm / 35.0 in (incl. mirrors)
Weights & Capacities
Dry Weight
186 kg / 410 lbs
Fuel Capacity
16 Liters / 3.6 US gal
Wet Weight
209 kg / 460 lbs
Performance
Top Speed
191.5 km/h / 119 mph
Max Power
55 kW / 75 hp @ 7300 rpm
Max Torque
77 Nm / 7.9 kg-m / 56.8 lbs/ft @ 5500 rpm
Engine
Displacement
798 cc / 47.7 cub. in.
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
82 x 75.8 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Fuel Induction
Electronic intake injection, ∅45mm throttle bodies
Ignition
Knock control and oxygen sensors.
Starter
Electric
Drivetrain
Clutch
Multiplate-plate in oil bath
Final Drive
Chain
Gear Ratios
1st 2.46 / 2nd 1.75 / 3rd 1.38 / 4th 1.17 / 5th 1.04 / 6th 0.96:1
Transmission / Drive
6 Speed
Chassis
Frame Type
Tubular frame in steal partly carrying the engine
Suspension - Front
Conventional ∅41mm telescopic fork
Suspension - Rear
Gas pressure spring strut
Steering Head Angle
64°
Trail
95 mm / 3.7 in.
Wheel Travel - Front
180mm / 7.1 in..
Wheel Travel - Rear
170mm / 6.7 in.
Wheels & Brakes
Brakes - Front
2 x ∅300mm discs, 4 piston calipers, ABS
Brakes - Rear
Single ∅265mm disc, 2 piston caliper, ABS
Tyres - Front
110/80-R19
Tyres - Rear
140/80-R17
