Key Specifications
Torque
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4750 Revolutions">RPM
Fuel Capacity
14.10 litres
Advertisement

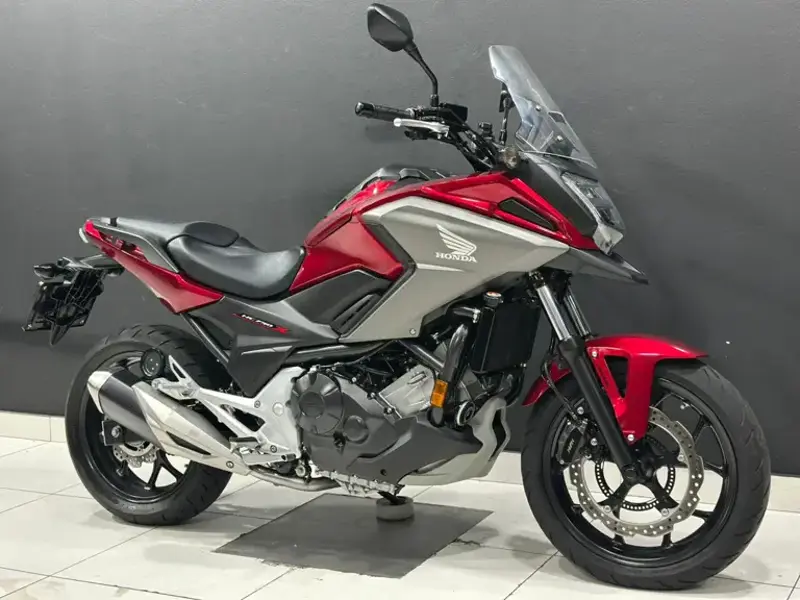

Full 2021 Honda NC750X Specifications
Colours
Glint Wawe Blue Metallic, Mat Ballistic Black Metallic, Grand Prix Red
Width (mm)
846 mm
Width (in.)
33.3 inches
Wheelbase (mm)
1534 mm
Wheelbase (in.)
60.4 inches
Storage
22-liter utility compartment
Seat Height (mm)
800 mm
Seat Height (in.)
31.5 inches
Length (mm)
2210 mm
Length (in.)
87.0 inches
Height (mm)
1330 mm
Height (in.)
52.4 inches
Ground Clearance (mm)
145 mm
Ground Clearance (in.)
5.7 inches
Wet Weight (lbs.)
471.8 pounds
Wet Weight (kg)
214.0 kg
Oil Capacity (Quarts)
4.23 US quarts
Oil Capacity (l)
4.00 litres
Fuel Capacity (l)
14.10 litres
Fuel Capacity (gal.)
3.73 US gallons
Fuel Control
Single Overhead Cams (SOHC)
Engine Type
Twin, four-stroke
Displacement (ci)
45.46 cubic inches
Displacement (cc)
745.0 cc
CO2
81.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Bore x Stroke (mm)
77.0 x 80.0 mm
Bore x Stroke (in,)
3.0 x 3.1 inches
Fuel System
Injection. PGM-FI electronic fuel injection
Compression Ratio
10.7:1
Fuel Consumption
3.50 litres/100 km (28.6 km/l or 67.21 mpg)
Ignition
Computer controlled digital transistorised with electronic advance
Starter
Electric
Valve System
4
Clutch
2 multiplate wet
Final Drive
Chain (final drive)
Gearbox
6-speed
Primary Drive
16T/43T; chain
Trail (in.)
4.3 inches
Trail (mm)
110 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (mm)
120 mm
Wheel Travel - Rear (in.)
4.7 inches
Wheel Travel - Rear (mm)
120 mm
Frame Type
Diamond; steel pipe
Suspension - Front
41mm telescopic fork
Suspension - Rear
Monoshock damper, Pro-Link swingarm
Rake
27.0°
Lighting system
LED lights front and rear
Brakes - Front
Single disc. ABS. Hydraulic. Two-piston calipers.
Brakes - Rear
Single disc. ABS. Hydraulic. Single-piston caliper.
Rims
Multi-Spoke Aluminium Cast
Tyres - Front
120/70-ZR17
