Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
138.3 kW / 188 hp @ 12500 rpm
Torque
113 Nm / 11.5 kgf-m @ 8700 rpm
Top Speed
292.0 km/h / 181.4 mph
Weight
208 kg / 458.5 lbs
Fuel Capacity
17 Litres / 4.4 us GAL
Advertisement

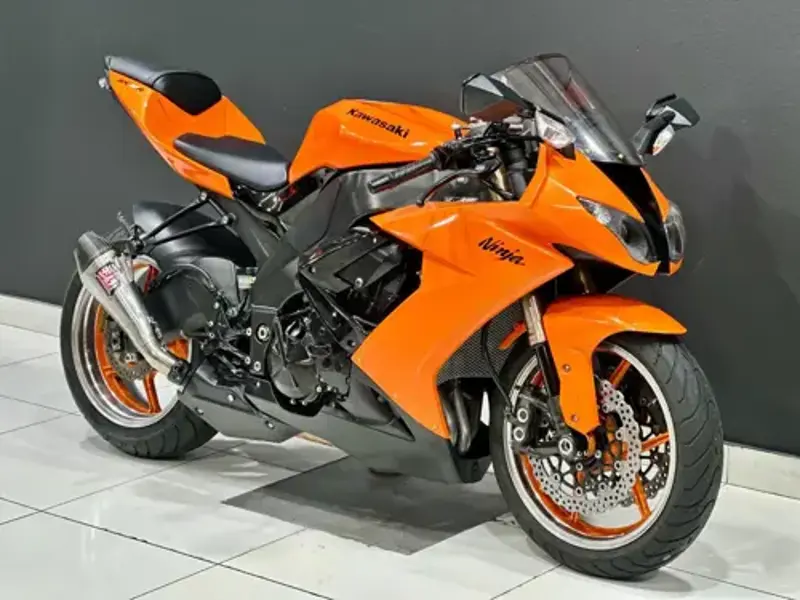

Full 2008 Kawasaki ZX-10R Ninja Specifications
Year
2008
Make Model
Kawasaki ZX-10R Ninja
Seat Height
880 mm / 34.6 in
Wheelbase
1415 mm / 55.7 in
Ground Clearance
125 mm / 4.9 in
Height
1135 mm / 44.6 in
Length
2110 mm / 83 in
Width
710 mm / 27.9 in
Dry Weight
179 kg / 394.6 lbs
Fuel Capacity
17 Litres / 4.4 us GAL
Wet Weight
208 kg / 458.5 lbs
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
76 x 55 mm
Compression Ratio
12.7:1
Cooling System
Liquid cooled
Fuel Induction
DFI with 43mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder
Ignition
TCBI with digital advance and Kawasaki Ignition Management System (KIMS)
Lubrication
Forced lubrication, wet sump with oil cooler
Starter
Electric
Clutch
Wet multi-disc, manual
Final Drive
Sealed chain
Final Drive Ratio
2.412 (41/17)
Gear Ratios
1st 2.600 (39/15) 2nd 2.053 (39/19) 3rd 1.737 (33/19) 4th 1.550 (31/20) 5th 1.400 (28/20) 6th 1.304 (30/23)
Transmission / Drive
6 Speed
Frame Type
Backbone/Twin-tube, aluminium (Pressed/die-cast composite structure)
Suspension - Front
43mm inverted fork with DLC coating, adjustable rebound and compression damping, spring preload adjustability and top-out springs
Suspension - Rear
Bottom-Link Uni-Trak® with top-out spring, stepless, dual-range (high/low-speed) compression damping, stepless rebound damping, fully adjustable spring preload
Rake
25.5°
Steering Angle
27°
Trail
110 mm / 4.3 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
125 mm / 4.9 in
Brakes - Front
2x 310mm discs 4 piston calipers
Brakes - Rear
Single 220 mm disc 1 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
