Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
199.8 hp / 147 kW @ 13000 rpm
Torque
114.3 Nm / 11.62 kg-m @ 1150 rpm
Top Speed
296.6 km/h / 184.3 mph
Weight
198 kg / 436.3 lbs ABS 201 kg / 443.2 lbs
Fuel Capacity
17 Litres / 4.5 US gal
Advertisement

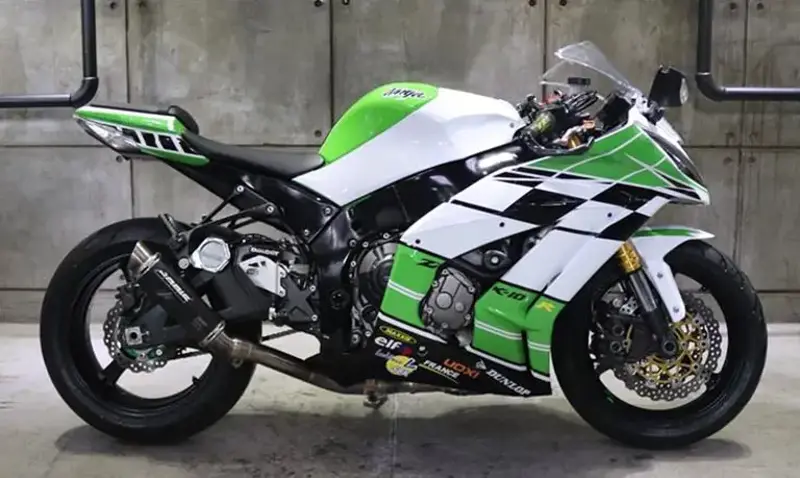

Full 2013 Kawasaki ZX-10R Ninja Specifications
Year
2013
Make Model
Kawasaki ZX-10R Ninja
Seat Height
812 mm / 32 in
Wheelbase
1425 mm / 56.1 in
Ground Clearance
135 mm / 5.3 in
Height
1115 mm / 43.9 in
Length
1115 mm / 43.9 in
Width
715 mm / 28.0 in
Fuel Capacity
17 Litres / 4.5 US gal
Wet Weight
198 kg / 436.3 lbs ABS 201 kg / 443.2 lbs
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
76 x 55 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Fuel Consumption
16.4 km/lit
Fuel Induction
DFIØ with four 47mm Keihin throttle bodies with oval sub-throttles, two injectors per cylinder
Ignition
TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Lubrication
Forced lubrication, wet sump with oil cooler
Starter
Electric
Clutch
Wet multi-disc, manual
Final Drive
Sealed Chain
Final Drive Ratio
2.294 (39/17)
Gear Ratios
1st 2.600 (39/15) 2nd 2.053 (39/19) 3rd 1.737 (33/19) 4th 1.571 (33/21) 5th 1.444 (26/18) 6th 1.348 (31/23)
Primary Drive Ratios
1.681 (79/47)
Transmission / Drive
6 Speed
Frame Type
Twin spar, cast aluminium
Suspension - Front
43mm Big Piston Fork (BPF), rebound, compression and spring preload adjustability.
Suspension - Rear
Horizontal Back-link. High/low-speed compression, rebound and preload adjustable. 4.9in wheel travel
Rake
25.°
Trail
109.9 mm / 4.2 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
140 mm / 5.5 in
Brakes - Front
2x 310 mm petal discs, radial-mount 4-piston calliper
Brakes - Rear
Single 220mm petal disc
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
