Key Specifications
Engine
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Power
146 kW / 200 hp @ 13000 rpm
Torque
113.5 Nm / 83.7 lb-ft @ 11600 rpm
Weight
204 kg / 449.8 lbs ABS 206 kg / 454.2 lbs
Fuel Capacity
17 Litres / 4.5 gal
Advertisement

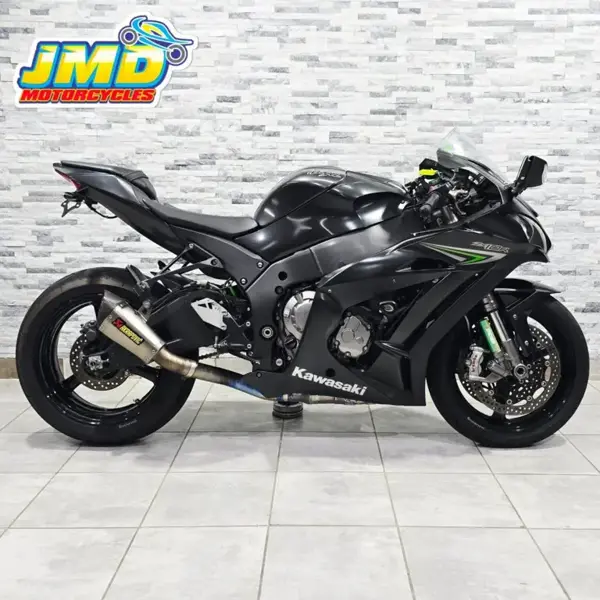

Full 2016 Kawasaki ZX-10R Ninja Specifications
Year
2016
Make Model
Kawasaki ZX-10R Ninja
Seat Height
835 mm / 32.9 in
Wheelbase
1440 mm / 56.7 in
Ground Clearance
144 mm / 5.7 in
Height
1145 mm / 45.1 in
Length
1145 mm / 45.1 in
Width
739 mm / 29.1 in
Fuel Capacity
17 Litres / 4.5 gal
Wet Weight
204 kg / 449.8 lbs ABS 206 kg / 454.2 lbs
Displacement
998 cc / 60.9 cu-in
Engine Detail
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
76 x 55 mm
Compression Ratio
13.0:1
Cooling System
Liquid cooled
Fuel Induction
DFIØ with four 47mm Keihin throttle bodies, two injectors per cylinder
Ignition
TCBI with digital advance and Sport-Kawasaki Traction Control (S-KTRC)
Lubrication
Forced lubrication, wet sump with oil cooler
Starter
Electric
Clutch
Wet multi-disc, manual
Final Drive
Sealed Chain
Final Drive Ratio
2.471 (42/17)
Gear Ratios
1st 2.611(47/18) 2nd 1.947 (37/19) 3rd 1.545 (34/22) 4th 1.333 (32/24) 5th 1.154 (30/26) 6th 1.036 (29/28)
Primary Drive Ratios
1.556 (84/54)
Transmission / Drive
6 Speed
Frame Type
Aluminum perimeter
Suspension - Front
43mm inverted Showa Balance Free Fork, adjustable stepless rebound and compression damping, spring preload adjustability
Suspension - Rear
Horizontal back-link with gas-charged shock, stepless, dual-range (low/high-speed) compression damping, stepless rebound damping, fully adjustable spring preload
Rake
25°
Trail
106.68 mm / 4.2 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
114.5 mm / 4.5 in
Equipment / Features
Kawasaki Launch Control Mode (KLCM), Sport Kawasaki TRaction Control (S-KTRC), Kawasaki Engine Braking Control, Electronic Throttle Valve (ETV) and Kawasaki Quick Shifter (KQS)
Brakes - Front
2x 330 mm floating discs, dual radial-mounted 4-piston callipers
Brakes - Rear
Single 220mm disc with aluminum single-piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
