Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
0.92 gallons

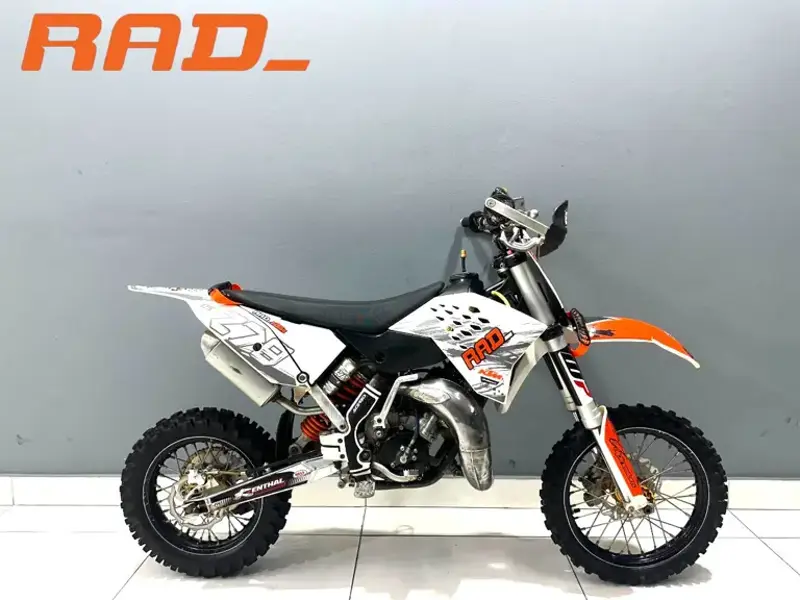

Full 2013 KTM 65 SX Specifications
Ground Clearance (in.)
11.0 inches
Ground Clearance (mm)
280 mm
Seat Height (in.)
29.5 inches
Seat Height (mm)
750 mm
Wheelbase (in.)
44.8 inches
Wheelbase (mm)
1,137 mm
Dry Weight (kg)
55.5
Dry Weight (lbs.)
122.4 pounds
Fuel Capacity (gal.)
0.92 gallons
Fuel Capacity (l)
3.50 litres
Bore x Stroke (in,)
1.8 x 1.6 inches
Bore x Stroke (mm)
45.0 x 40.8 mm
Displacement (cc)
64.85 cc
Displacement (ci)
3.96 cubic inches
Engine Type
Single cylinder, two-stroke
Engine Detail
Reed intake.
Engine Lubrication
Mixture oil lubrication
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starter
Kick
Clutch
Wet multi-disc clutch / hydraulically operated
Final Drive
Chain
Gearbox
6-speed
Primary Drive
14:48. Primary drive: 23:75 straight cut spur gear.
Wheel Travel - Front (in.)
10.8 inches
Wheel Travel - Front (in.)
8.1 inches
Wheel Travel - Front (mm)
275 mm
Wheel Travel - Front (mm)
205 mm
Wheel Travel - Rear (in.)
10.7 inches
Wheel Travel - Rear (mm)
272 mm
Frame Type
Central tube frame of chrome molybdenum steel tubing, powder-coated
Suspension - Front
WP ?Suspension USD ?35
Suspension - Rear
WP ?Suspension ?3614 BAVP
Rake
25.5°
Brakes - Front Diameter (in.)
7.8 inches
Brakes - Front Diameter (mm)
198 mm
Brakes - Rear Diameter (in.)
6.3 inches
Brakes - Rear Diameter (mm)
160 mm
Brakes - Front
Single disc. Four-piston calipers.
Brakes - Rear
Single disc. Two-piston calipers.
